CF-SZ200 / SZ500 Series
CF-SZ200 / SZ500 Series
500KG Bottom Supported Ground Rail Dynamic Magnetic Automatic Door Opener
Model
CF-SZ200/SZ500 Series
Product Specifications
Single opening, double opening
Installation method
Top hanging, side hanging
Drive door weight
≤ 500kg
Ambient Temperature
-30℃ ~ 50℃
Open/Close Speed
100 ~ 500mm/s (Adjustable)

Product Features

Stable Durable:Non-contact magnetic linear drive, stable performance, longer service life. Smoothness:The main control unit adopts high-precision vector control algorithm, and the operation is smooth and stable. Strong Safety:FOC high-precision control, precise control of opening and closing force, rapid rebound response when encountering resistance, safe and harmless. Ultra Quiet:No transmission structure friction, motor running sound ≤ 45dB. Intelligent Learning:Self-learning stroke when powered on, adaptive control operation path, mobile phone debugging, low maintenance cost. Convenient Installation:Supports pre-factory debugging and setting, and is easy to install without any barriers. Small Size:Compact linear structure, detachable building block assembly design, improve space utilization. Intelligent Linkage:Supports multi-track independent driving, no linkage accessories required.

Main Technical Parameters

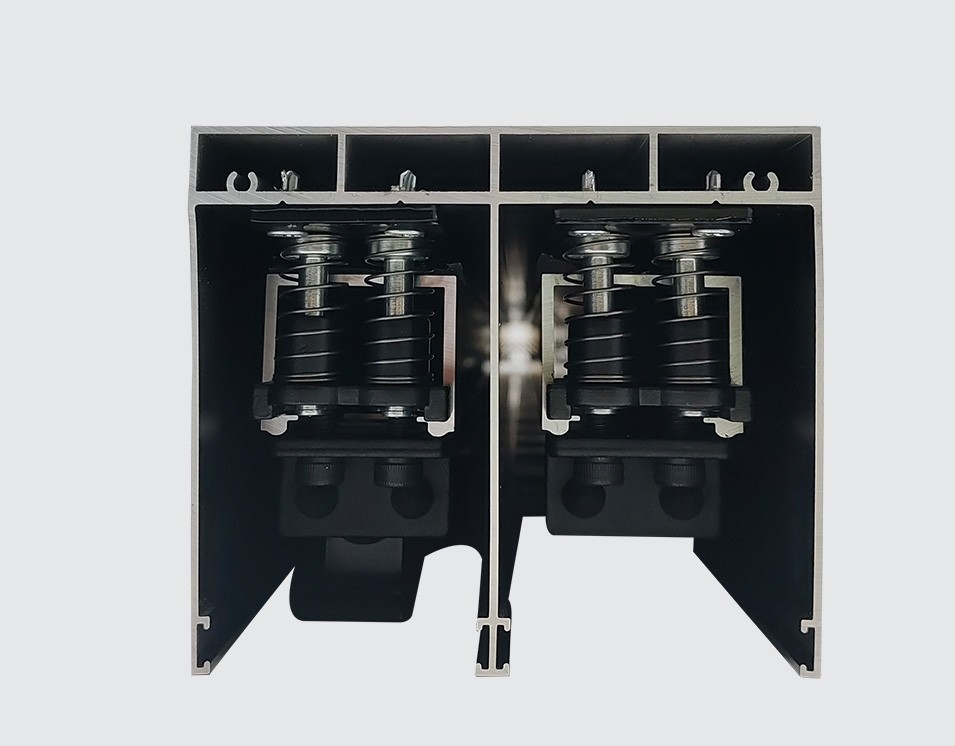

Lower load-bearing ground rail door unit

Max Work Load for One Door Frame≤200kg / ≤500kg
ApplicationOne fixed one movable / Two fixed two movable
Power Supply VoltageAC200-240V,50/60Hz
Rated Voltage24V
Rated Power120W / 240W
Standby Power< 5W (No lock state)
Open/Close Speed100 ~ 500mm/s(Adjustable)
Hold Time0 ~ 30S(Adjustable)
Anti-pinch Force(Safe and harmless)≤10N
Quiet RequirementsOperation noise <50dB
Ambient Temperature-30℃~ 50℃

Hardware6

Glass door hanger

Glass door hanger

4516 Profile door hanger

4516 Profile door hanger

Glass door hanger

Glass door hanger

Heavy profile door hanger

Heavy profile door hanger

Wooden door hanger

Wooden door hanger

Easy install hanger

Easy install hanger

Motion Sensor1

IR Sensor

IR Sensor

Switch/Remote5

Wireless touch switch

Wireless touch switch

Wired touch switch

Wired touch switch

Wireless wave  switch

Wireless wave switch

Wired Hand Press Switch

Wired Hand Press Switch

Contactless Dedicated Room Switch

Contactless Dedicated Room Switch

Access Control System1

Face Recognition System

Face Recognition System
