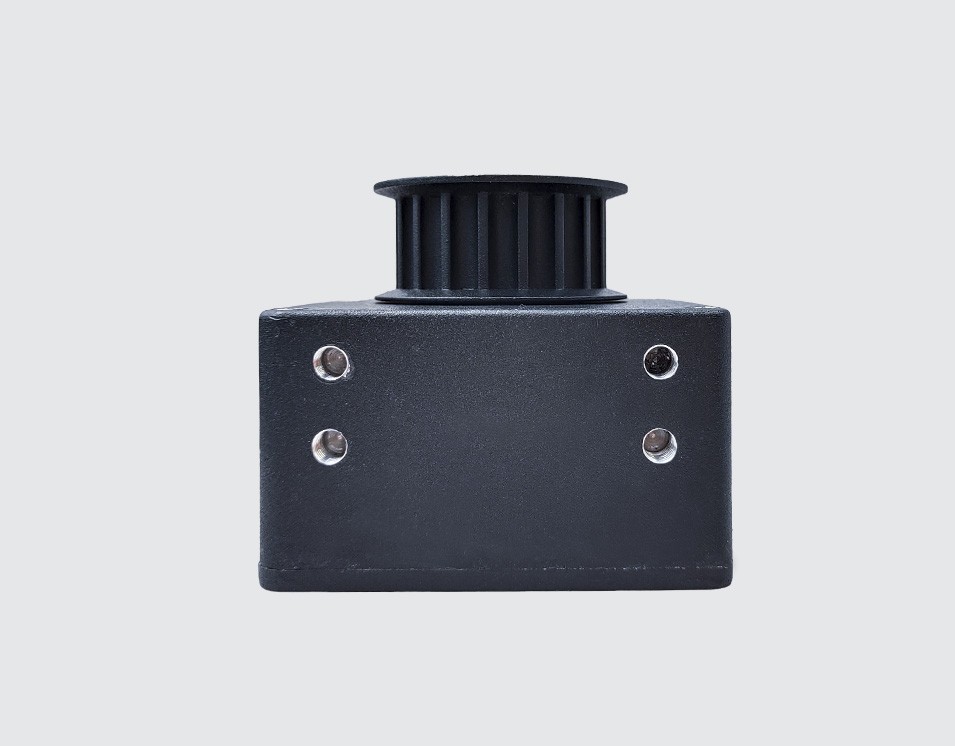

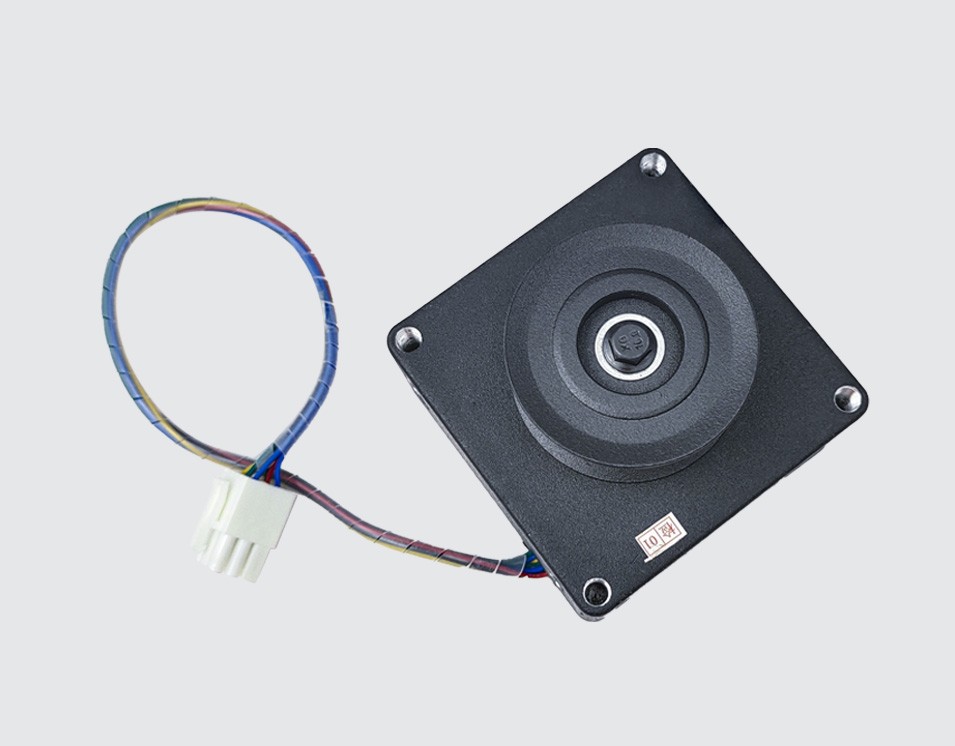

300KG Vector Motor
Model
QT - 82
Product Specifications
Single opening, double opening
Installation method
Top hanging, side hanging
Drive door weight
≤ 300kg
Rated Power
40W
Rated Speed
260 r/min
Product Features
Better Structure: No gearbox, using safer direct drive technology.
Smoothness: Control unit with Vector Control Algorithm, more smooth.
Safety: Precise control of opening and closing force, rapid rebound reaction when encountering resistance, easy reverse push, safety anti-pinch.
Ultra Quiet: No transmission structure friction, the door machine runs comfortably and quietly.
Auto Learning: Self-learning stroke after power-on, adaptive control operation path, mobile phone debugging, low maintenance cost.
Slim In Size: Compact linear structure, detachable building block assembly design, improve space utilization.
Easy Operation: Support pre-factory debugging settings, convenient installation without threshold.
Super Load-Bearing: Max 300kg, super high, super wide and super heavy door body can be installed at will (some models).
Main Technical Parameters
Max. Working Load: ≤ 300KG
Rated Power: 40W
Rated Voltage: DC 24V
Rated Speed: 260 r/min
Rated Moment: 1.5 N·m
Max Torque: 3.9 N·m
Protection Level: IP55
Configuration Description
Key Features
: Power on self-learning, self regulating the optimal operation state
: Rebound in case of obstruction, and the adjustable range is 1 ~ 5
: Support intelligent anti pinch safe light sensing
: Adjustable range of opening/cosing speed: 100 ~ 500 mm/s
: Adjustable range of door opening in place dwell time 0 ~ 30 s
: Support the mode switching of open, dosed, automatic, inching,manual, door locking,etc
: Support push and go, automatically identify the intention to open the door
: Supports one-click factory Settings restoration
: Good expansion performance
External Port
: 1 CAN bus communication port
: Multiple numbers input/output terminals
Protection Mechanism
: High performance power supply, 24V safe voltage output
: Overload,over-temperature and long-term locked rotor protection
: Rebound when encountering resistance, anti-shear speed in place
