CF-50 Series
CF-50 Series
CF-50 Series
CF-50 Series

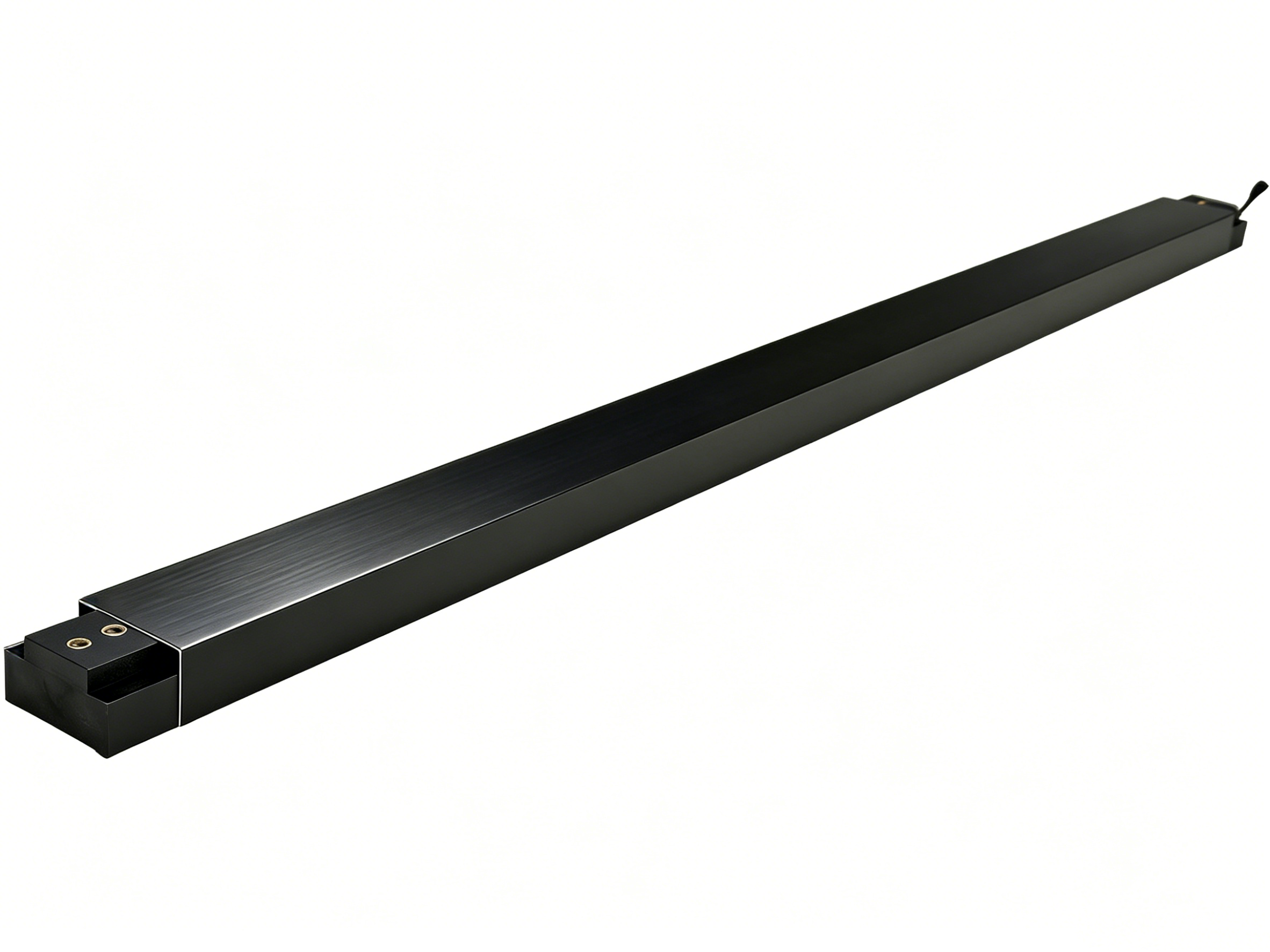

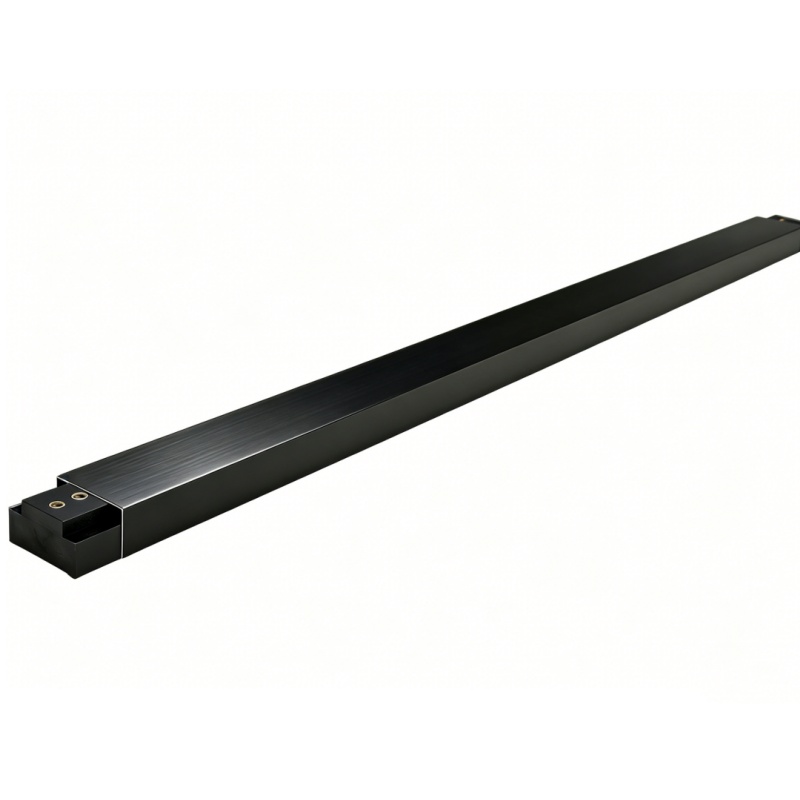

800kg Magnetic Linear Motor
Model
CF-50 Series
Application

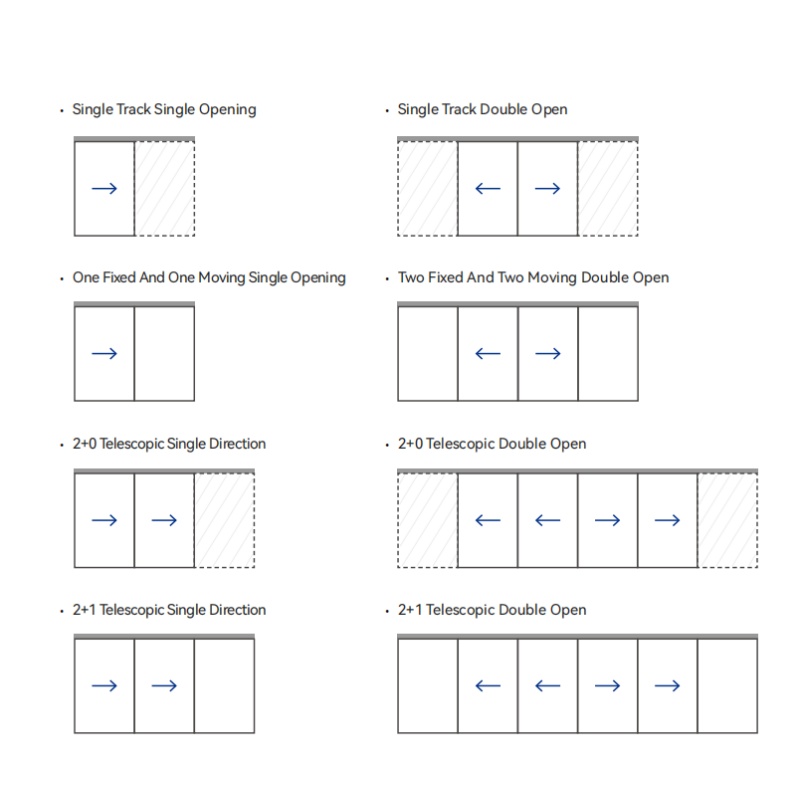

Single/Dual Open/Linkage
Drive Door Weight
≤800kg
Open / Close Speed
100~500mm/s (Adjustable)
Door Open Time
0 ~ 30s (adjustable)
Ambient Temperature
-30℃ ~ 50℃

Product Features

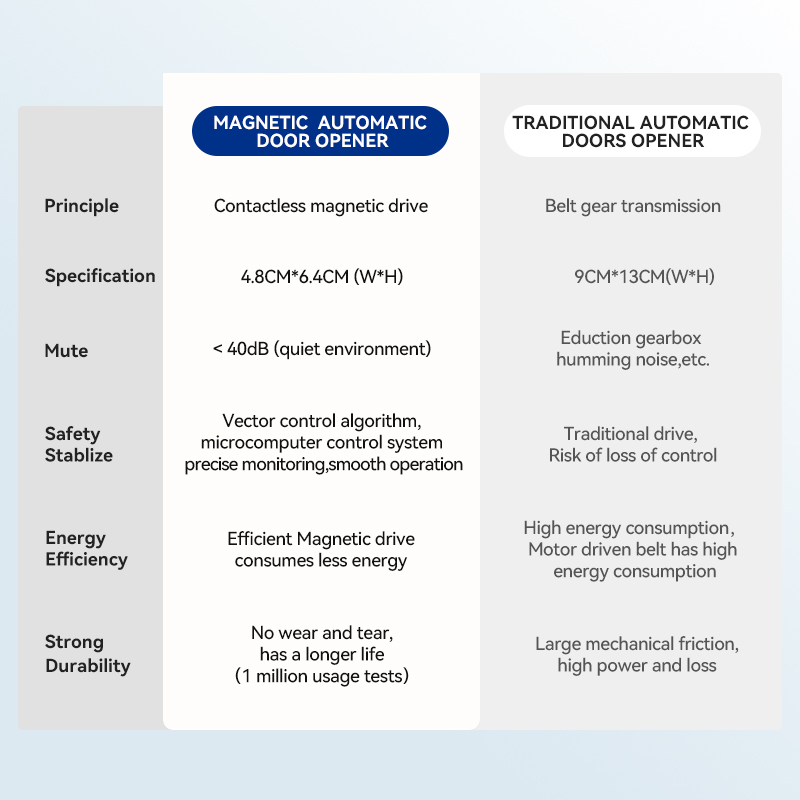

Non-Contact Magnetic Drive:Advanced magnetic levitation linear drive eliminates mechanical friction, ensuring stable operation and extended service life. Ultra Smooth Performance:High-precision vector control algorithm ensures smooth, consistent, and seamless motion. Strong Load Capacity:Supports up to 800kg load capacity (depending on model), ideal for large, heavy, and wide door systems. Advanced Safety Protection:FOC high-precision control ensures accurate force regulation and instant rebound when encountering resistance, enhancing operational safety. Ultra Quiet Operation:Frictionless structure reduces noise to ≤45dB, delivering a quiet and comfortable environment. Smart Learning System:Automatically learns door travel and adapts operation paths, with mobile APP debugging for easy setup and maintenance. Intelligent Integration:Compatible with various smart switches, access control systems, and whole-home automation platforms.

Main Technical Parameters

ModeCF-50 Series
ApplicationSingle / Dual Open / Linkage
Max Work Load for One Door Fram≤ 200kg/≤ 400kg/≤ 800kg
Rated Voltage36V/36V/64V
Rated Power90W/180W/360W
Standby Power< 5W(No lock state)
Ambient Temperature-30℃ ~ 50℃
Anti-pinch Force≤ 10N (Safe and no harm)
Open Speed100~500mm/s (Adjustable)
Close Speed100~500mm/s (Adjustable)
Door Open Time0 ~ 30s (adjustable)
Motor Length 895mm/1474mm/2434mm
