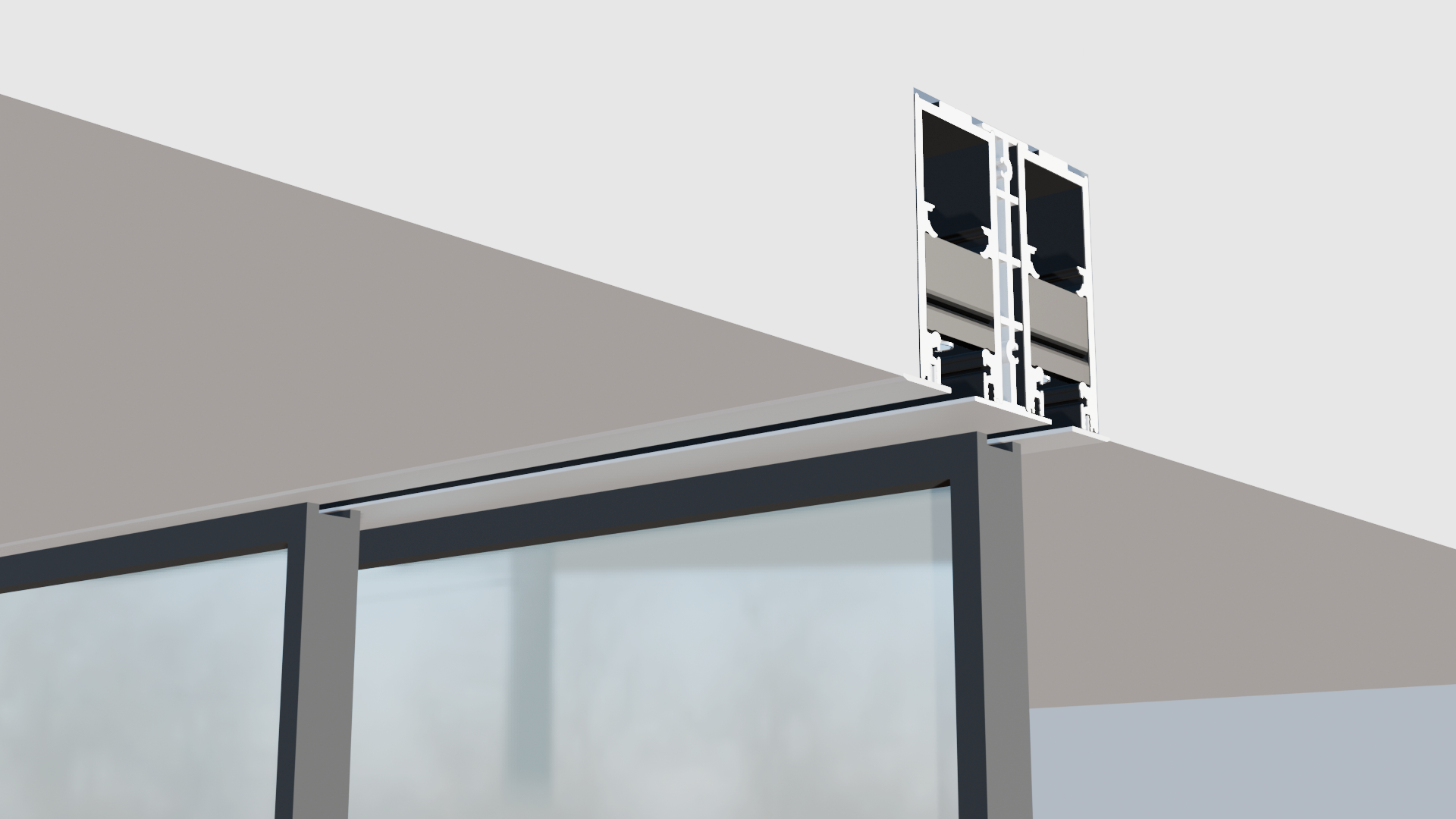

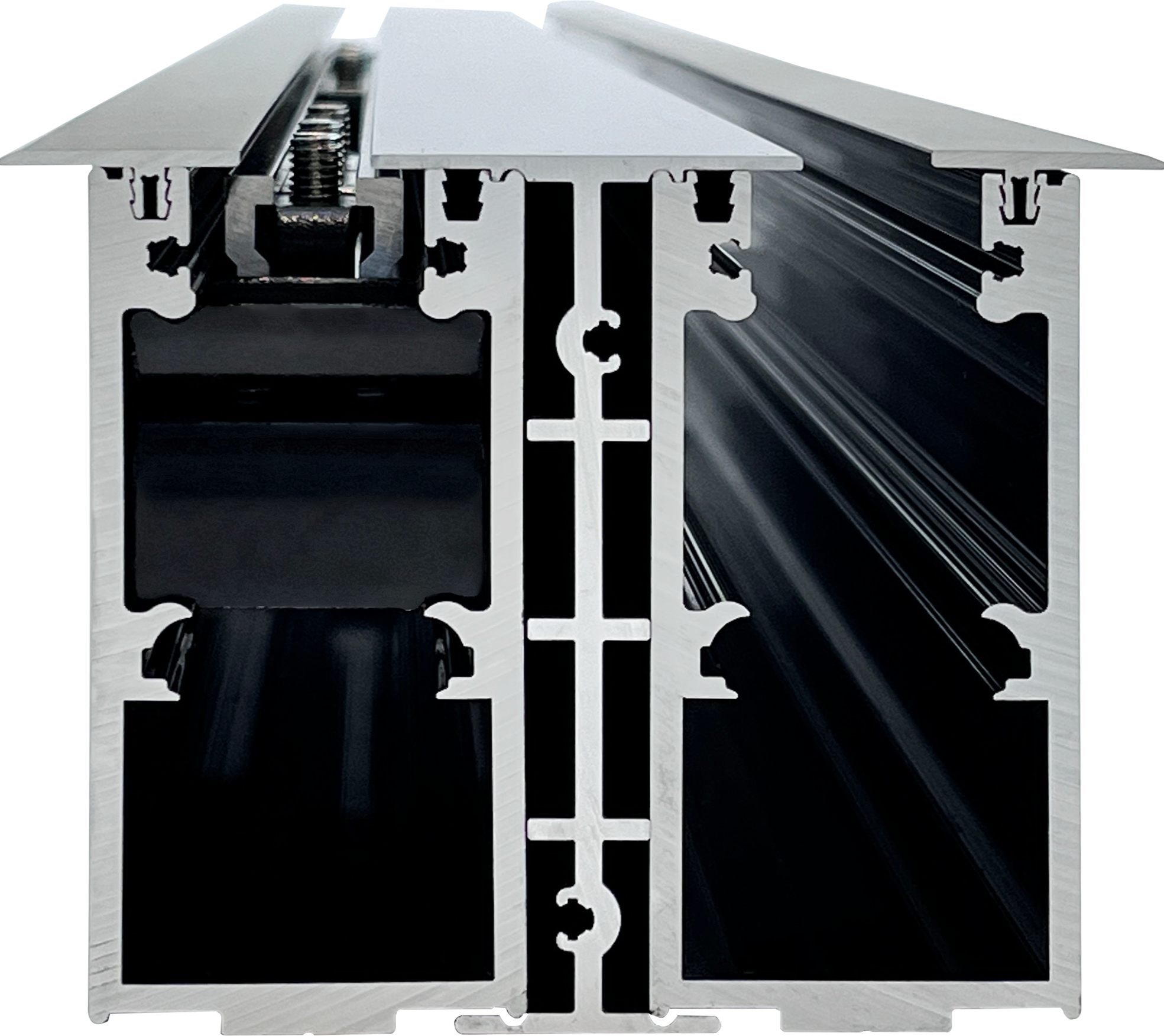

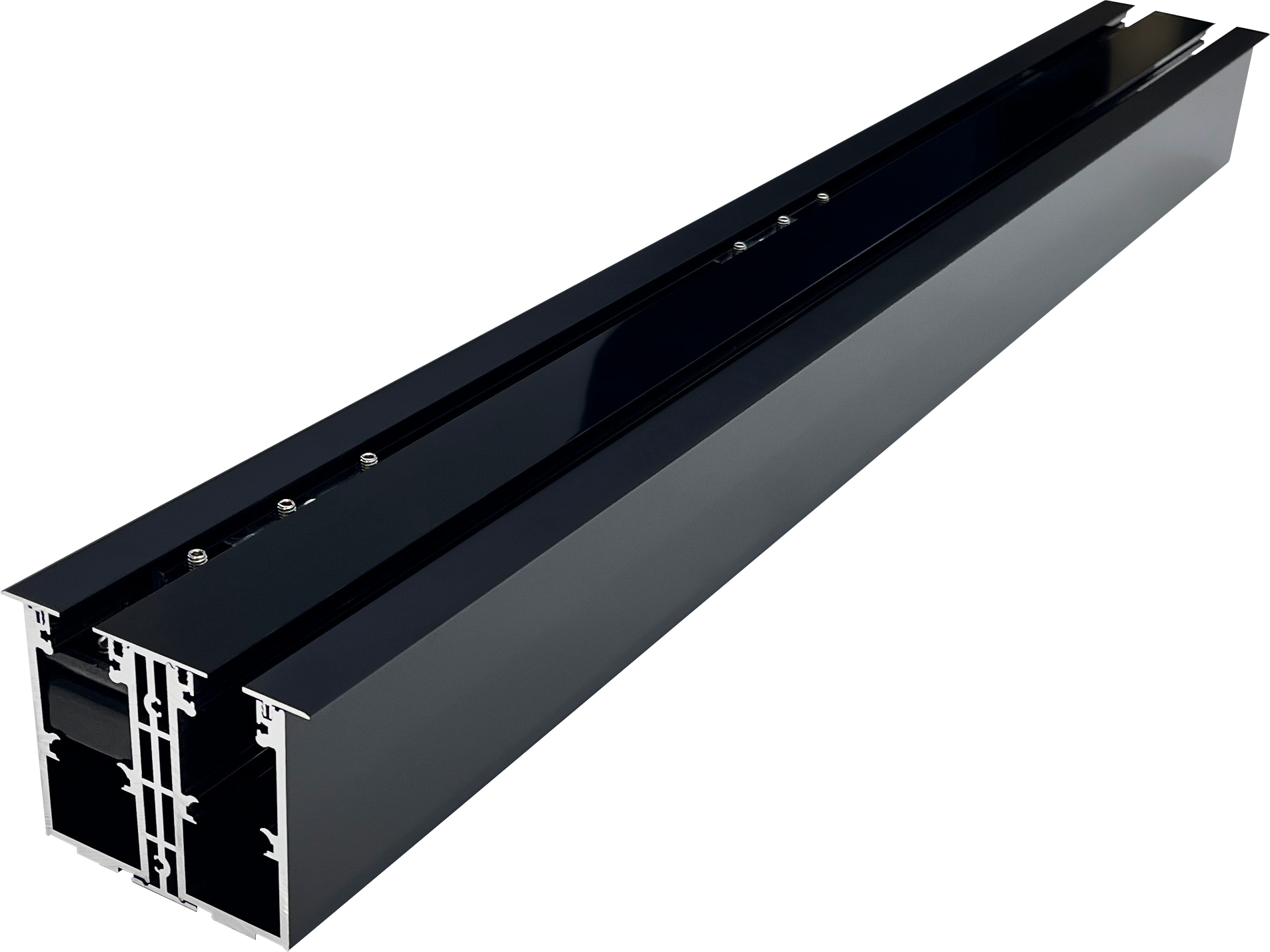

100KG Ultra-narrow Micro-crack Magnetic Automatic Door Opener
Model
CF-N100 Series
Product Specifications
Single track / Double track / Triple track / Quad track
Drive Door Weight
≤100kg
Installation Method
Hang / Hidden
Power Supply Voltage
AC100-240,50/60hz
Rated Power
60W (Single open)

Product Features

Non-Contact Magnetic Drive:Utilizing a non-contact magnetic linear drive, the system eliminates mechanical friction, ensuring stable performance and extended service life. Ultra Smooth Operation:Equipped with a high-precision vector control algorithm, ensuring consistent, smooth, and seamless door movement. Advanced Safety Protection:FOC precision control ensures accurate force management, with rapid rebound when encountering resistance for safe and reliable operation. Ultra Quiet Performance:With no transmission friction, the system operates quietly, providing a comfortable and noise-free environment. Intelligent Self-Learning:Automatically learns door travel after power-on and adapts operation paths, with mobile APP debugging for easy maintenance. Easy Installation:Pre-configured at the factory for quick and hassle-free installation. Slim in Size:Compact linear structure, detachable building block assembly design, improve space utilization Super Load Capacity:Maximum load capacity up to 100kg, suitable for large, heavy, and oversized door systems. Ultra-Narrow Gap:Compatible with various ultra-narrow door systems, achieving a minimalist installation effect. Standard Function:Cell phone Bluetooth APP control, Support automatic, tap, fully open, fully closed, locking the door(electric lock is optional)and other modes to switch freely,Support rich personalized settings such as operating speed, opening and closing time. Optional Function:Multiple digital input / output terminals are reserved to support various switches, remote control, infrared sensor,radar sensor, security light, password / swipe card access control, fingerprint recognition, face recognition, intelligent voice, remote control and other intelligent opening methods to meet the use of diverse scenarios.

Main Technical Parameters

ModelCF-N100 Series
Product SpecificationsSingle track / Double track / Triple track / Quad track
Max Work Load For One Door Frame≤ 100kg
ApplicationSingle/Dual Open/Linkage
Installation MethodHang / Hidden
Applicable Door MaterialsGlass doors, stainless steel edging doors, aluminum alloy doors, wooden doors, etc
Power Supply VoltageAC100-240,50/60h
Rated Power60W (Single open)
Standby Power<5W(No lock state)
Ambient Temperature-30℃ ~ 50℃
Anti-Pinch Force≤ 10N (Safe and no harm)
Open / Close Speed100~500mm/s (Adjustable)
Hold Time0 ~ 30s (Adjustable)

Hardware6

Glass door hanger

Glass door hanger

4516 Profile door hanger

4516 Profile door hanger

Glass door hanger

Glass door hanger

Heavy profile door hanger

Heavy profile door hanger

Wooden door hanger

Wooden door hanger

Easy install hanger

Easy install hanger

Motion Sensor1

IR Sensor

IR Sensor

Switch/Remote5

Wireless touch switch

Wireless touch switch

Wired touch switch

Wired touch switch

Wireless wave  switch

Wireless wave switch

Wired Hand Press Switch

Wired Hand Press Switch

Contactless Dedicated Room Switch

Contactless Dedicated Room Switch

Access Control System1

Face Recognition System

Face Recognition System
