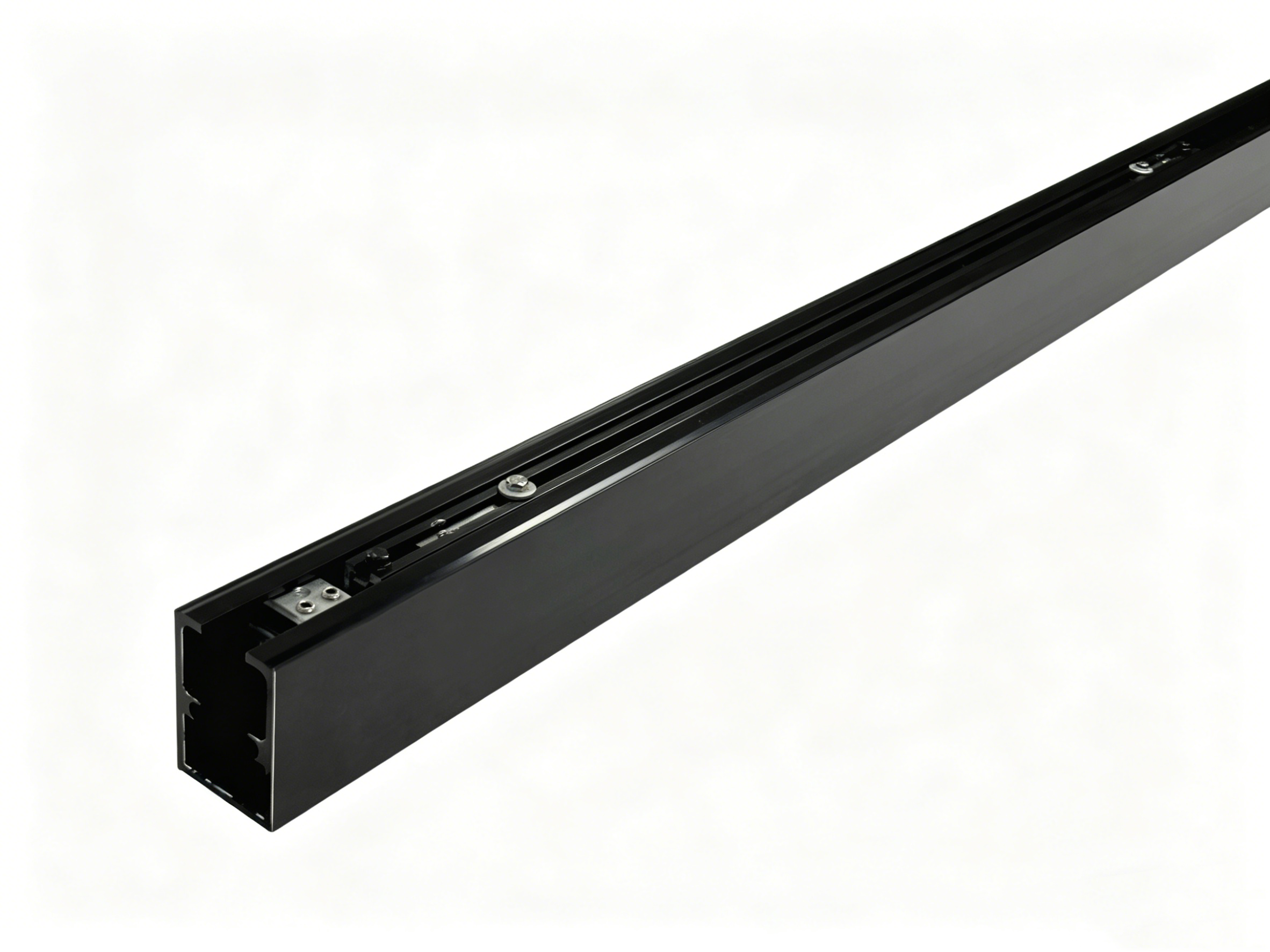

250KG Heavy-duty Micro-crack Magnetic Automatic Door Opener
Model
CF-LH100/180/250 Series
Product Specifications
Single track / Double track / Triple track / Quad track
Drive Door Weight
≤250kg
Installation Method
Hang / Hidden
Power Supply Voltage
AC100-240,50/60hz
Open / Close Speed
100~500mm/s (Adjustable)
Product Features
Non-Contact Magnetic Drive:Utilizing a non-contact magnetic linear drive, the system eliminates mechanical friction, ensuring stable performance and extended service life.
Ultra Smooth Operation:Equipped with a high-precision vector control algorithm, ensuring consistent, smooth, and seamless door movement.
Advanced Safety Protection:FOC precision control ensures accurate force management, with rapid rebound when encountering resistance for safe and reliable operation.
Ultra Quiet Performance:With no transmission friction, the system operates quietly, providing a comfortable and noise-free environment.
Intelligent Self-Learning:Automatically learns door travel after power-on and adapts operation paths, with mobile APP debugging for easy maintenance.
Easy Installation:Pre-configured at the factory for quick and hassle-free installation.
Slim in Size:Compact linear structure, detachable building block assembly design, improve space utilization
Super Load Capacity:Maximum load capacity up to 250kg, suitable for large, heavy, and oversized door systems.
Ultra-Narrow Gap:Compatible with various ultra-narrow door systems, achieving a minimalist installation effect.
Standard Function:Cell phone Bluetooth APP control, Support automatic, tap, fully open, fully closed, locking the door(electric lock is optional)and other modes to switch freely,Support rich personalized settings such as operating speed, opening and closing time.
Optional Function:Multiple digital input / output terminals are reserved to support various switches, remote control, infrared sensor,radar sensor, security light, password / swipe card access control, fingerprint recognition, face recognition, intelligent voice, remote control and other intelligent opening methods to meet the use of diverse scenarios.
Main Technical Parameters
Model: CF-LH100/180/250 Series
Product Specifications: Single track / Double track / Triple track / Quad track
Max Work Load For One Door Frame: ≤ 100kg/ ≤ 180kg /≤ 250kg
Application: Single / Dual Open / Linkage
Installation Method: Hang / Hidden
Applicable Door Materials: Glass doors, stainless steel edging doors, aluminum alloy doors, wooden doors, etc
Power Supply Voltage: AC100-240,50/60h
Rated Power: 60W (Single open)/120W (Single open)/240W (Single open)
Standby Power: < 5W (No lock state)
Ambient Temperature: -30℃ ~ 50℃
Anti-Pinch Force: ≤ 10N (Safe and no harm)
Open / Close Speed: 100~500mm/s (Adjustable)
Hold Time: 0 ~ 30s (Adjustable)
