CF-L100/L200 Series
CF-L100/L200 Series
200KG Micro-crack Magnetic Automatic Door Opener
Model
CF-L100/L200 Series
Product Specifications

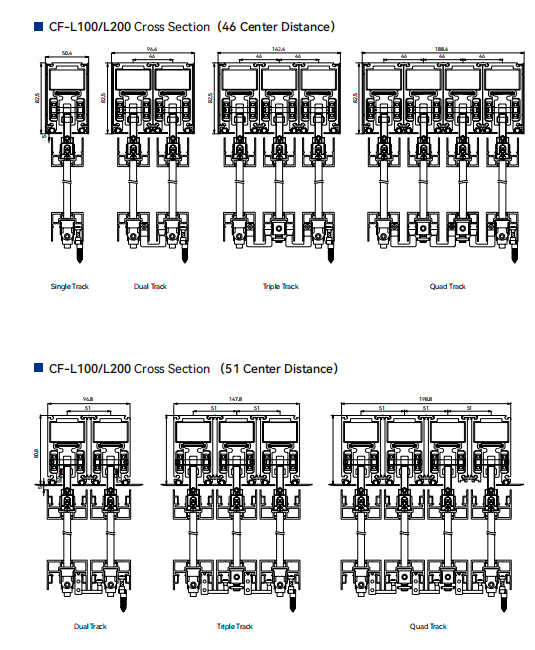

Single track / Double track / Triple track / Quad trac
Drive Door Weight
≤ 200kg

Product Features

Non-Contact Magnetic Drive:Utilizing a non-contact magnetic linear drive, the system eliminates mechanical friction, ensuring stable performance and extended service life. Ultra Smooth Operation:Equipped with a high-precision vector control algorithm, ensuring consistent, smooth, and seamless door movement. Advanced Safety Protection:FOC precision control ensures accurate force management, with rapid rebound when encountering resistance for safe and reliable operation. Ultra Quiet Performance:With no transmission friction, the system operates quietly, providing a comfortable and noise-free environment. Intelligent Self-Learning:Automatically learns door travel after power-on and adapts operation paths, with mobile APP debugging for easy maintenance. Easy Installation:Pre-configured at the factory for quick and hassle-free installation. Slim in Size:Compact linear structure, detachable building block assembly design, improve space utilization Super Load Capacity:Maximum load capacity up to 200kg, suitable for large, heavy, and oversized door systems. Ultra-Narrow Gap:Compatible with various ultra-narrow door systems, achieving a minimalist installation effect.

Model: CF - L100/CF - L200
Product Specifications: Single track / Double track / Triple track / Quad trac
Max Work Load For One Door Frame: ≤ 100kg/≤ 200kg

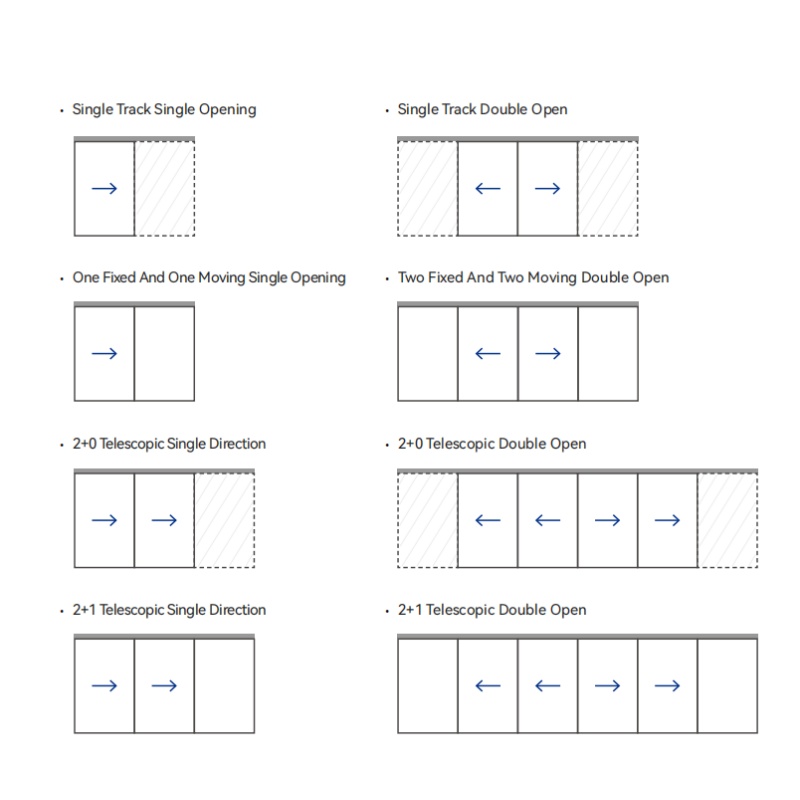

Application: Single / Dual Open / Linkage
Installation Method: Hang / Hidden
Applicable Door Materials: Pure glass door, stainless steel edge door, aluminum alloy door, wooden door and other door materials are not limited
Power Supply Voltage: AC100-240,50/60hz
Rated Power: 60W (Single open)
Standby Powe: < 5W (No lock state)
Ambient Temperature: -30℃ ~ 50℃
Anti-Pinch Force: ≤ 10N (Safe and no harm)
Open / Close Speed: 100~500mm/s (Adjustable)
Standard Function: Cell phone Bluetooth APP control;Support automatic, tap, fully open, fully closed, locking the door(electric lock is optional)and other modes to switch freely;Support rich personalized settings such as operating speed, opening and closing time
Optional Function: Linked door control program,multiple digital input / output terminals are reserved to support various switches, remote control, infrared sensor, radar sensor, security light, password / swipe card access control, fingerprint recognition, face recognition, intelligent voice, remote control and other intelligent opening methods to meet the use of diverse scenarios
