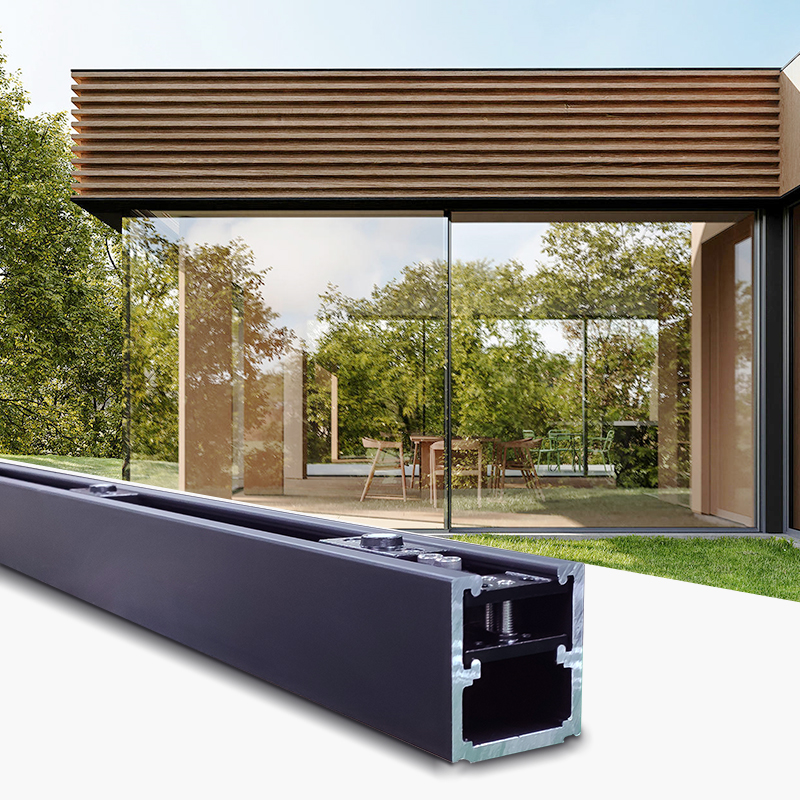

180KG Side Hang Automatic Door Opener
Model
CF-G Series
Description

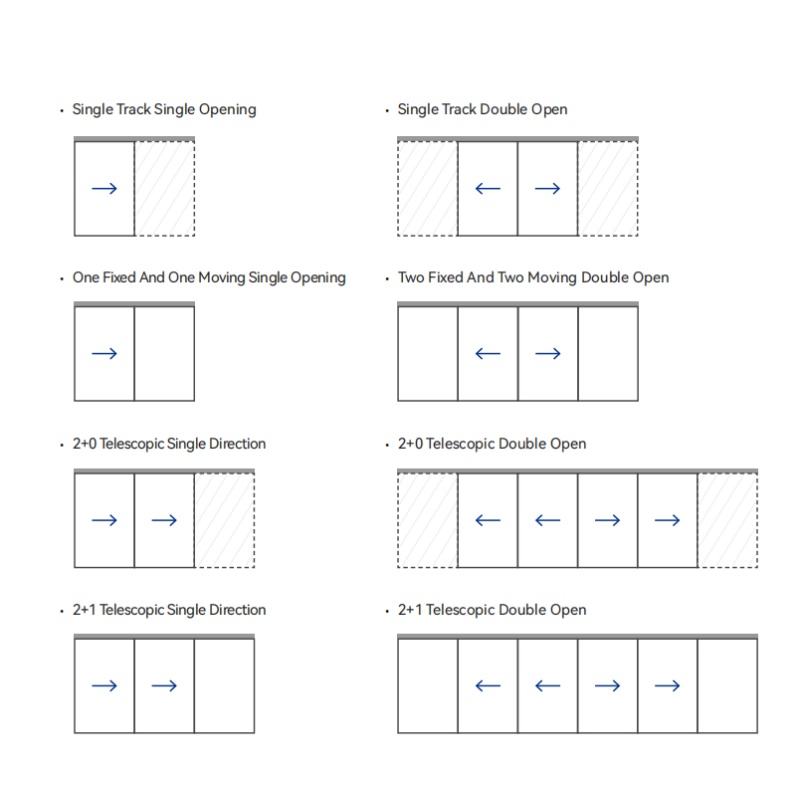

Single open / Double open / Linkage

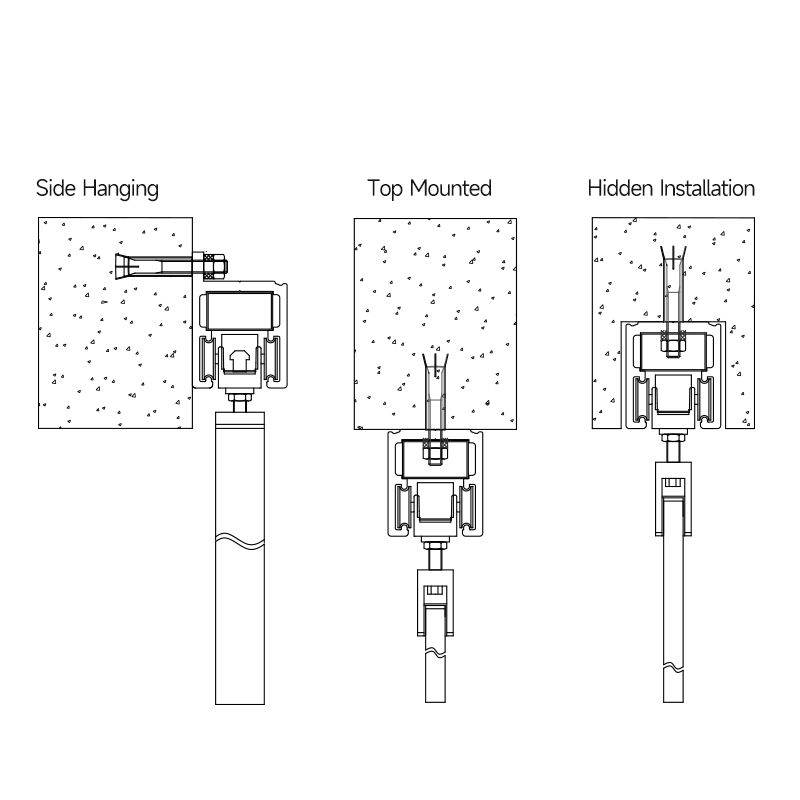

Installation Method
Side Hang
Drive Door Weight
≤ 180kg
Open / Close Speed
100~500mm/s (Adjustable)
Hold Time
0 ~ 30s (Adjustable

Product Features

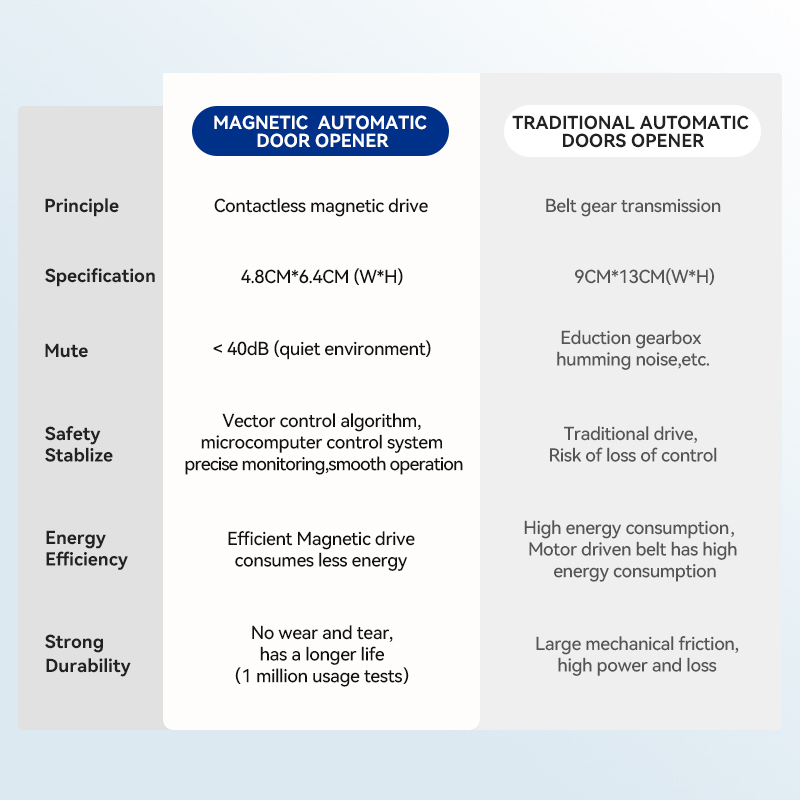

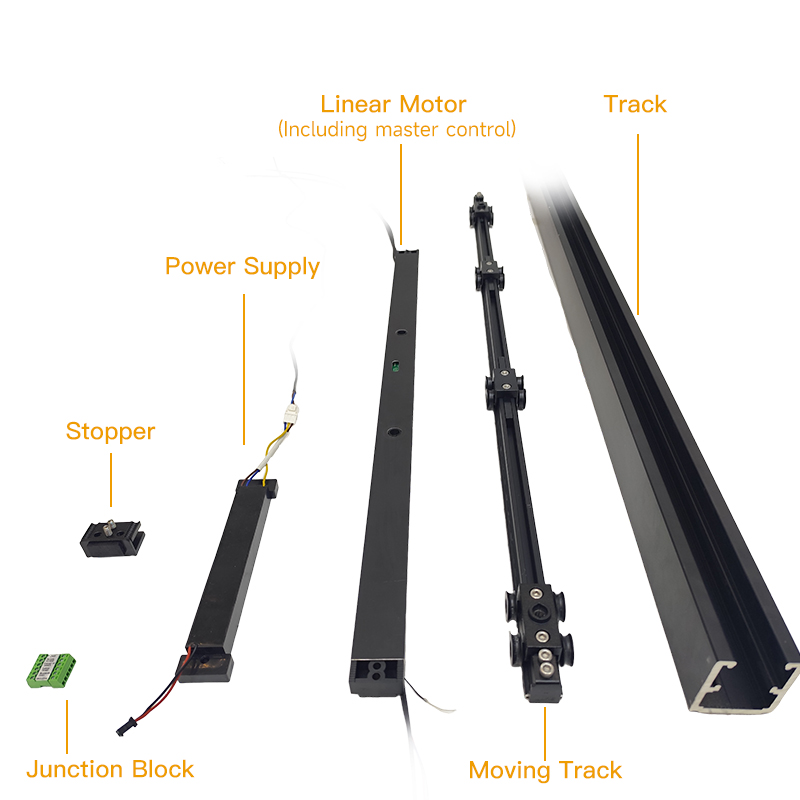

STABLE AND DURABLE: Non-contact magnetic linear drive ensures stable performance and a longer service life. SMOOTH OPERATION: The main control unit employs a high-precision vector control algorithm, ensuring smooth and seamless operation. STRONG SAFETY: FOC high-precision control provides precise regulation of opening and closing force, with rapid rebound response upon encountering resistance, ensuring safe and reliable operation. ULTRA QUIET: No friction from transmission components; the door operates quietly and comfortably. INTELLIGENT LEARNING: Self-learning stroke upon power-up, adaptive control of the operating path, mobile phone debugging, and low maintenance costs. CONVENIENT INSTALLATION: Supports pre-factory debugging settings; easy installation without a threshold. SLIM IN SIZE: Compact linear structure and modular assembly design improve space utilization. INTELLIGENT LINKAGE: Supports multi-track independent drive; no linkage accessories required. SUPER LOAD-BEARING: Maximum load capacity of 180 kg; supports installation of extra-tall, extra-wide, and extra-heavy door panels (select models). Standard Function:Cell phone Bluetooth APP control, Support automatic, tap, fully open, fully closed, locking the door(electric lock is optional)and other modes to switch freely,Support rich personalized settings such as operating speed, opening and closing time. Optional Function:Multiple digital input / output terminals are reserved to support various switches, remote control, infrared sensor,radar sensor, security light, password / swipe card access control, fingerprint recognition, face recognition, intelligent voice, remote control and other intelligent opening methods to meet the use of diverse scenarios.

Main Technical Parameters

Max Work Load for One Door Frame≤ 180kg
DescriptionSingle open / Double open / Linkage
Installation MethodTop hang / Hidden (With side hang accessories)
Applicable door materialsGlass doors, stainless steel edging doors, aluminum alloy doors, wooden doors, etc
Power Supply VoltageAC200-240,50/60hz
Rated Power120W (Single open)
Standby Power< 5W (No lock state
Ambient Temperature-30℃ ~ 50℃
Anti-pinch Force≤ 10N (Safe and harmless)
Open / Close Speed100~500mm/s (Adjustable)
Hold Time0 ~ 30s (Adjustable)

Hardware6

Glass door hanger

Glass door hanger

4516 Profile door hanger

4516 Profile door hanger

Glass door hanger

Glass door hanger

Heavy profile door hanger

Heavy profile door hanger

Wooden door hanger

Wooden door hanger

Easy install hanger

Easy install hanger

Motion Sensor1

IR Sensor

IR Sensor

Switch/Remote5

Wireless touch switch

Wireless touch switch

Wired touch switch

Wired touch switch

Wireless wave  switch

Wireless wave switch

Wired Hand Press Switch

Wired Hand Press Switch

Contactless Dedicated Room Switch

Contactless Dedicated Room Switch

Access Control System1

Face Recognition System

Face Recognition System
