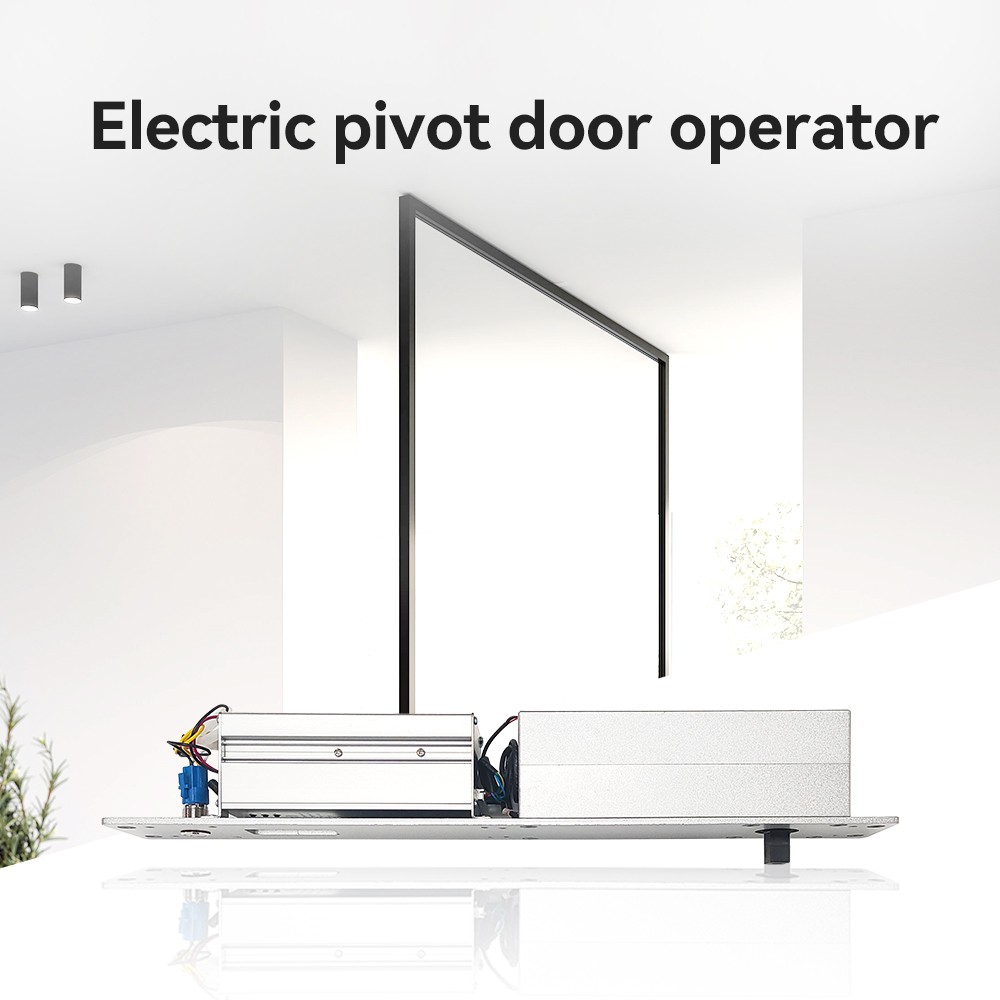

Electric Pivot Door Opener
Model
LP-C150/E150
Maximum Door Weight
≤ 150kg
Application
Single door / Double door / Multi-door linkage

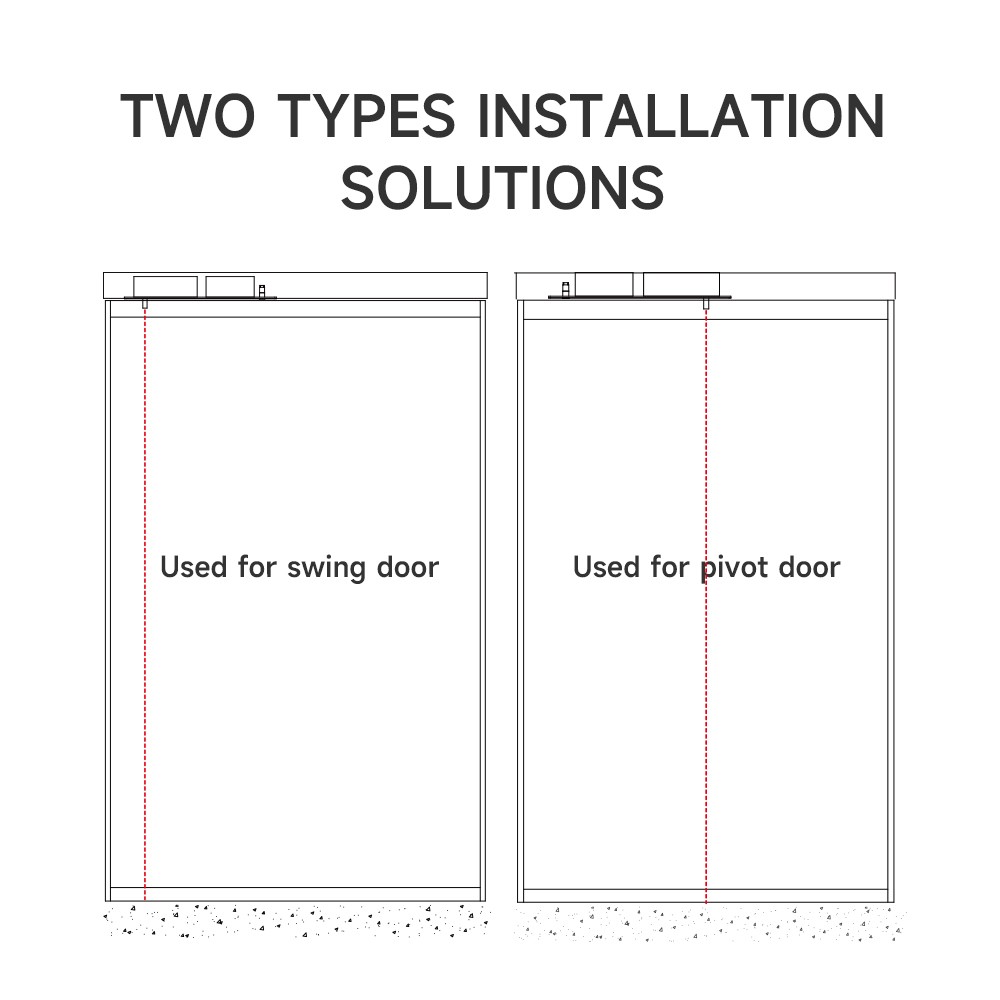

Installation Method
Center/Eccentric
Product Features
Bi-directional 90° Positioning:Supports inward and outward 90° positioning, enabling flexible space design and smooth, uninterrupted door movement.
Smooth & Silent Operation:Advanced drive technology ensures stable performance with operating noise below 50dB, creating a calm and refined environment.
Strong Load Capacity:Supports door weight up to 150kg, suitable for large-size pivot doors in high-end applications.
Intelligent Safety Protection:Equipped with vector control and microprocessor monitoring for precise motion control. The system detects obstacles instantly and rebounds automatically (≤10N), ensuring safe and reliable operation. Built-in power protection safeguards against short circuit, over-voltage, and over-current.
Smart Control & Integration:Supports multiple opening methods and integrates with smart access control and home automation systems for convenient operation.
Reliable Durability:Tested for 500,000+ cycles, ensuring long-term performance and reliability.
Main Technical Parameters
Direct drive center axis door opener/Direct drive off-axis door opener
Door Width: 700mm~2000mm
Door Weight: ≤150kg
Application: Single door/ Double door / Multi-door linkage
Power Type: AC110-240V,50/60HZ
Output Voltage: DC24V/12V
Rated Power: 60W
Static Power: 5W
Open/Close Speed (0-90°): 3~12S(8 adjustable levels)
Hold Time: 0~30S(Adjustable)
Resistance Sensitivity: 5-speed adjustable
Quietness Requirements: Operating noise <50dB
Manual Opening and Closing Force: ≤10N
Repeated Opening and Closing Durability: 500,000 times
Ambient Temperature: -30℃~50℃
