80KG Semi Automatic Door Opener

Model
CF-B80
Product Specifications
Single opening, double opening,
Installation method
Top hang / Hidden
Drive door weight
≤ 80kg
Open / Close Speed
100 ~ 500mm/s (Adjustable)
Hold Time
0 ~ 30s (Adjustable)

Product Features

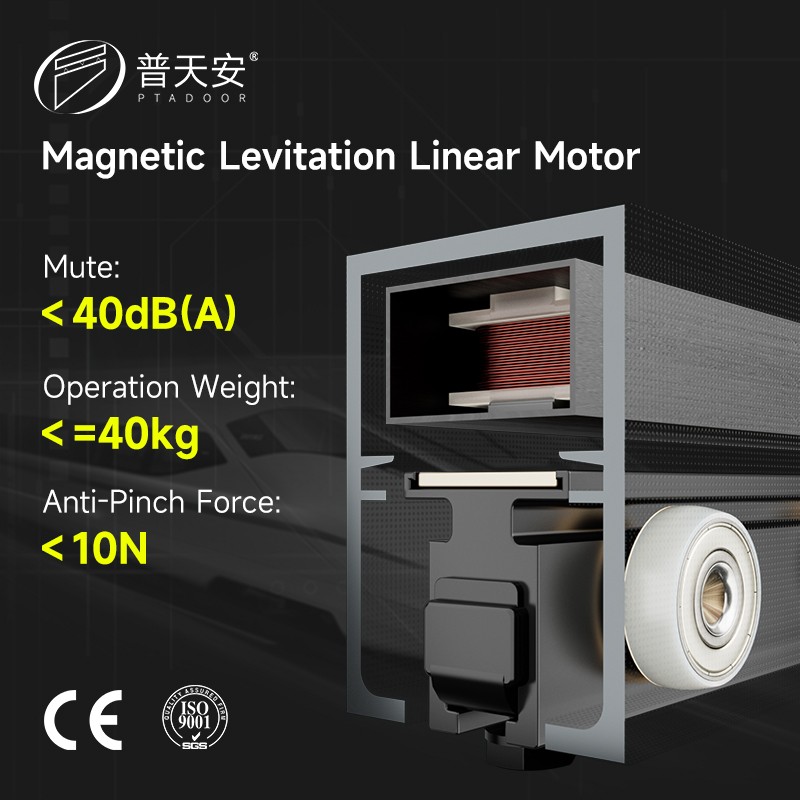

Quiet Durable: Equipped with magnetic suspension drive, super impact resistance, more balanced buffering, silent and smooth opening and closing, and greatly extended service life. Vector Control Technology: The door opens with a push, automatically buffers and closes the door, stops when you reach out, prevents pinching your hands, and is always comfortable and secure. Wider Load-Bearing: The magnetic suspension sliding door buffer is divided into two specifications light 60kg and heavy 80kg, with a wider range of adaptability. No Restrictions On Door Materials: Applicable to a variety of door materials such as wooden doors, glass doors, screen doors, etc. Applicable Scenarios: Can be used in a variety of scenarios such as cabinet doors, kitchens, etc.

Main Technical Parameters

K-60

Max Work Load for one Door Frame: ≤ 60kg
Installation Method: Top hang / Hidden
Applicable Door Materials: Glass doors, stainless steel edging doors, aluminum alloy doors, wooden doors, etc.
Power Supply Voltage: AC110-240V, 50/60Hz
Standby Power: < 5W(No lock state)
Open Speed: 100 ~ 500mm/s (Adjustable)
Close Speed: 100 ~ 500mm/s (Adjustable)
Hold Time: 0 ~ 30s(Adjustable)
Anti-pinch Force: ≤ 10N (Safe and harmless)
Ambient Temperature: -30℃ ~ 50℃

K-80

Max Work Load for one Door Frame: ≤ 80kg
Installation Method: Top hang / Hidden
Applicable Door Materials: Glass doors, stainless steel edging doors, aluminum alloy doors, wooden doors, etc.
Power Supply Voltage: AC110-240V, 50/60Hz
Standby Power: < 5W(No lock state)
Open Speed: 100 ~ 500mm/s (Adjustable)
Close Speed: 100 ~ 500mm/s (Adjustable)
Hold Time: 0 ~ 30s(Adjustable)
Anti-pinch Force: ≤ 10N (Safe and harmless)
Ambient Temperature: -30℃ ~ 50℃

Hardware(6)

Glass door hanger

Glass door hanger

4516 Profile door hanger

4516 Profile door hanger

Glass door hanger

Glass door hanger

Heavy profile door hanger

Heavy profile door hanger

Wooden door hanger

Wooden door hanger

Easy install hanger

Easy install hanger

Motion Sensor(1)

IR Sensor

IR Sensor

Switch/Remote(5)

Wireless touch switch

Wireless touch switch

Wired touch switch

Wired touch switch

Wireless wave  switch

Wireless wave switch

Wired Hand Press Switch

Wired Hand Press Switch

Contactless Dedicated Room Switch

Contactless Dedicated Room Switch

Access Control System(1)

Face Recognition System

Face Recognition System
