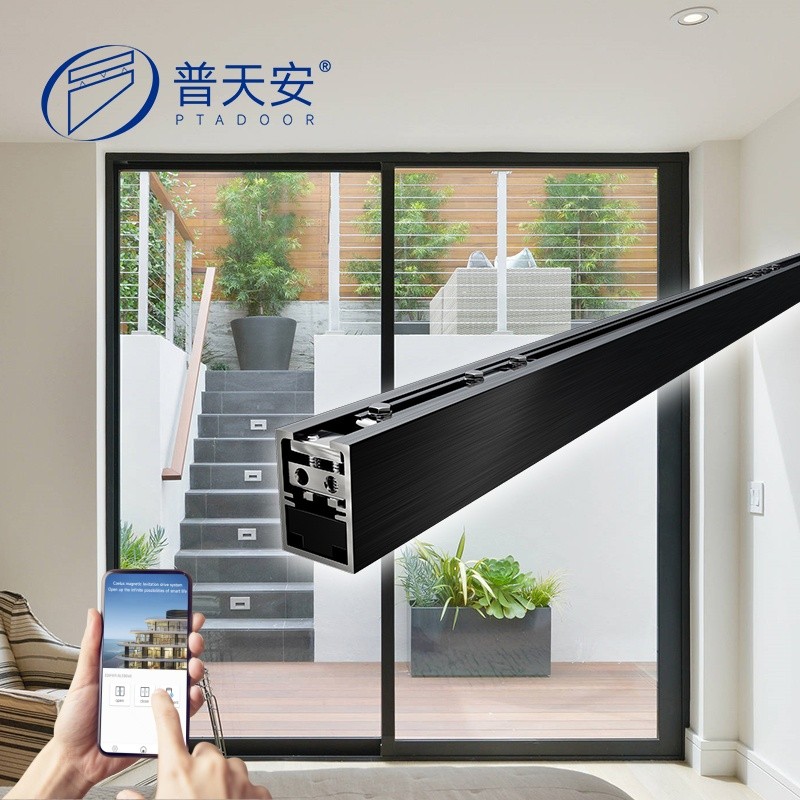

CF-F40 magnetic sliding door operator

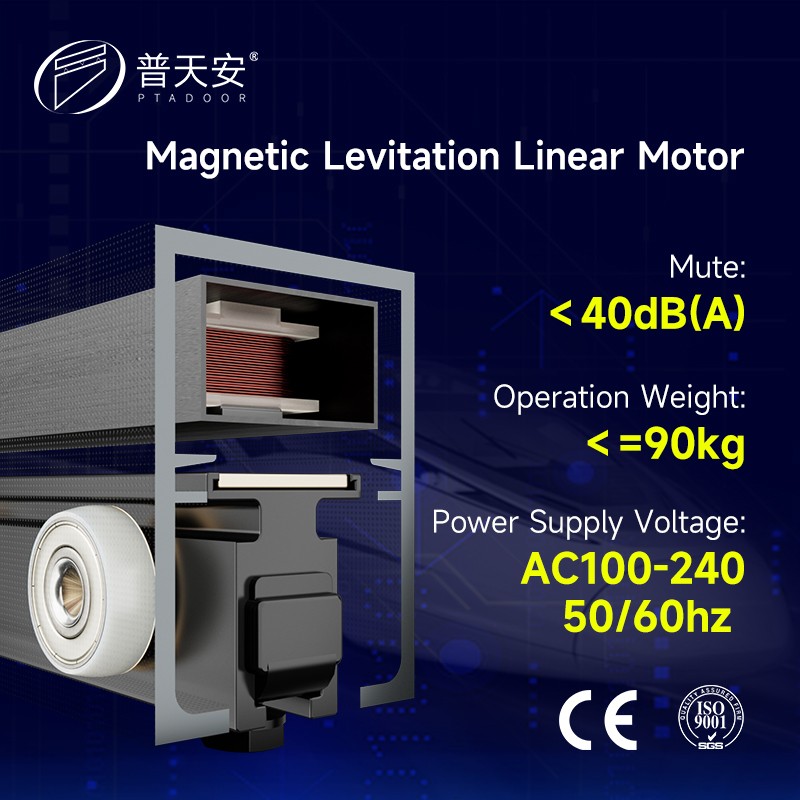

CF-F40 uses a magnetic linear drive for sliding-door applications. When requesting a quotation, identify the drive assembly and accessories separately from the door leaf, frame and installation work. The proposed configuration and supply scope should be confirmed against your project drawings.
Confirm the components in your quotation

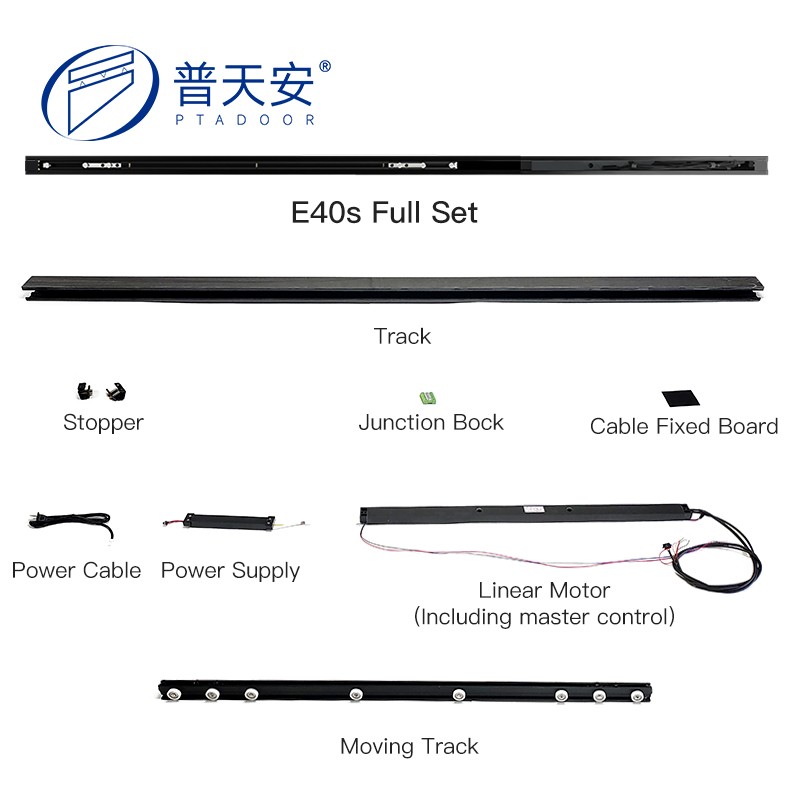

Use the following component reference when discussing a CF-F40 configuration. Ask for the item reference, quantity and supply status for each part. Track lengths, accessory selections and the drawing revision need to match the proposed door arrangement.
| Component to identify | What to confirm |
|---|---|
| Linear motor with main control | Proposed item reference and quantity |
| Power supply | Matching item reference and quantity |
| Power cable | Supply status and required length |

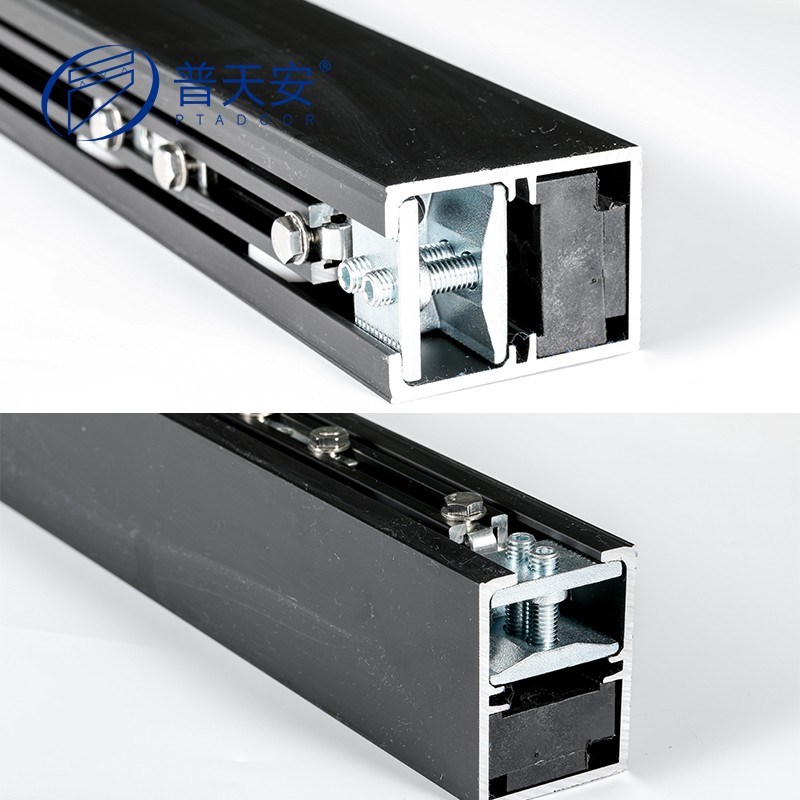

| Track | Proposed reference, length and quantity |
| Moving track | Matching reference, length and quantity |

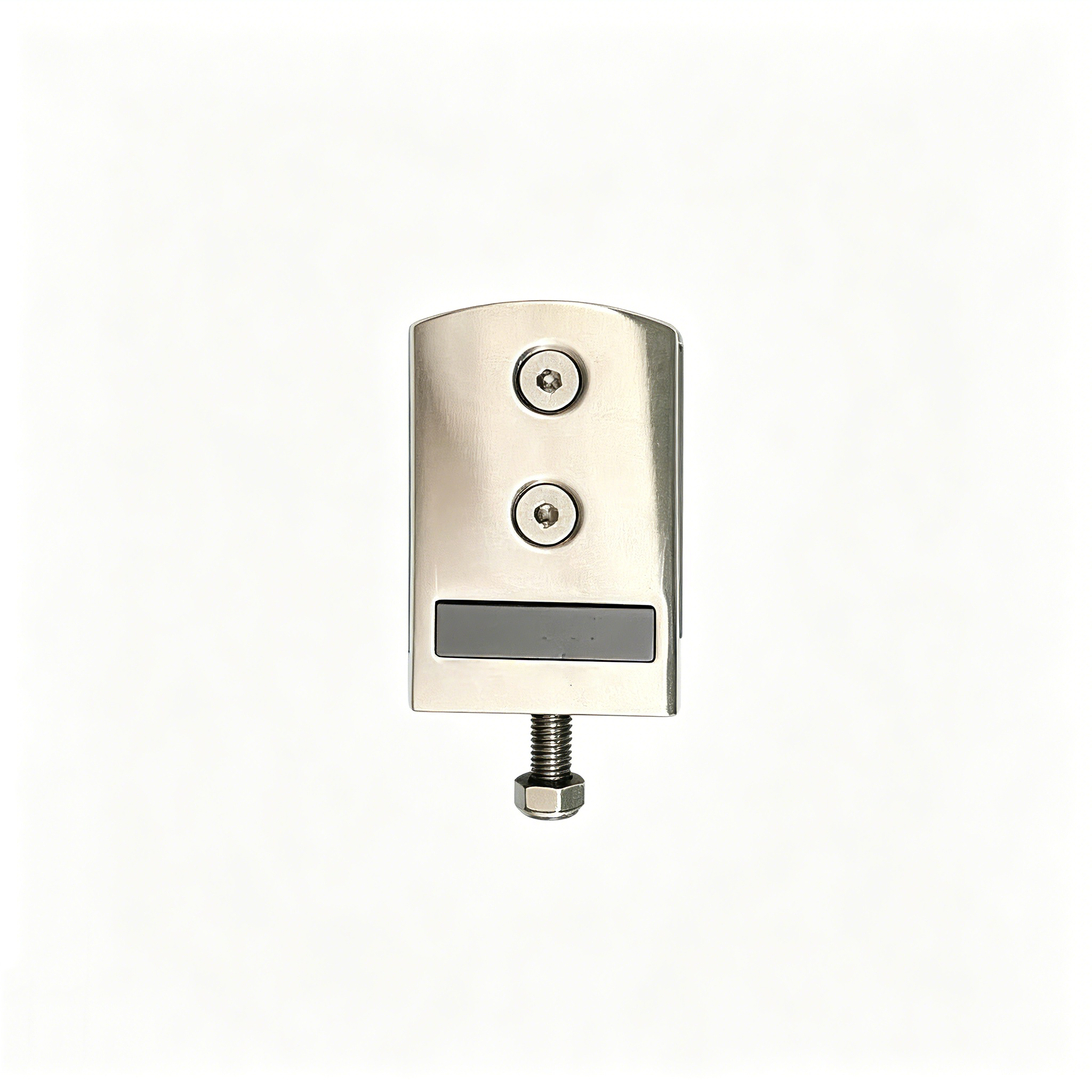

| Stoppers | Proposed reference and quantity |
| Junction block | Proposed reference and quantity |
| Cable fixing plate | Proposed reference and quantity |
For each item, record whether it is included, optional, buyer supplied or not applicable. Mark unanswered items “To confirm”. The reference identifies components to discuss; the quotation determines the supply scope for your order.

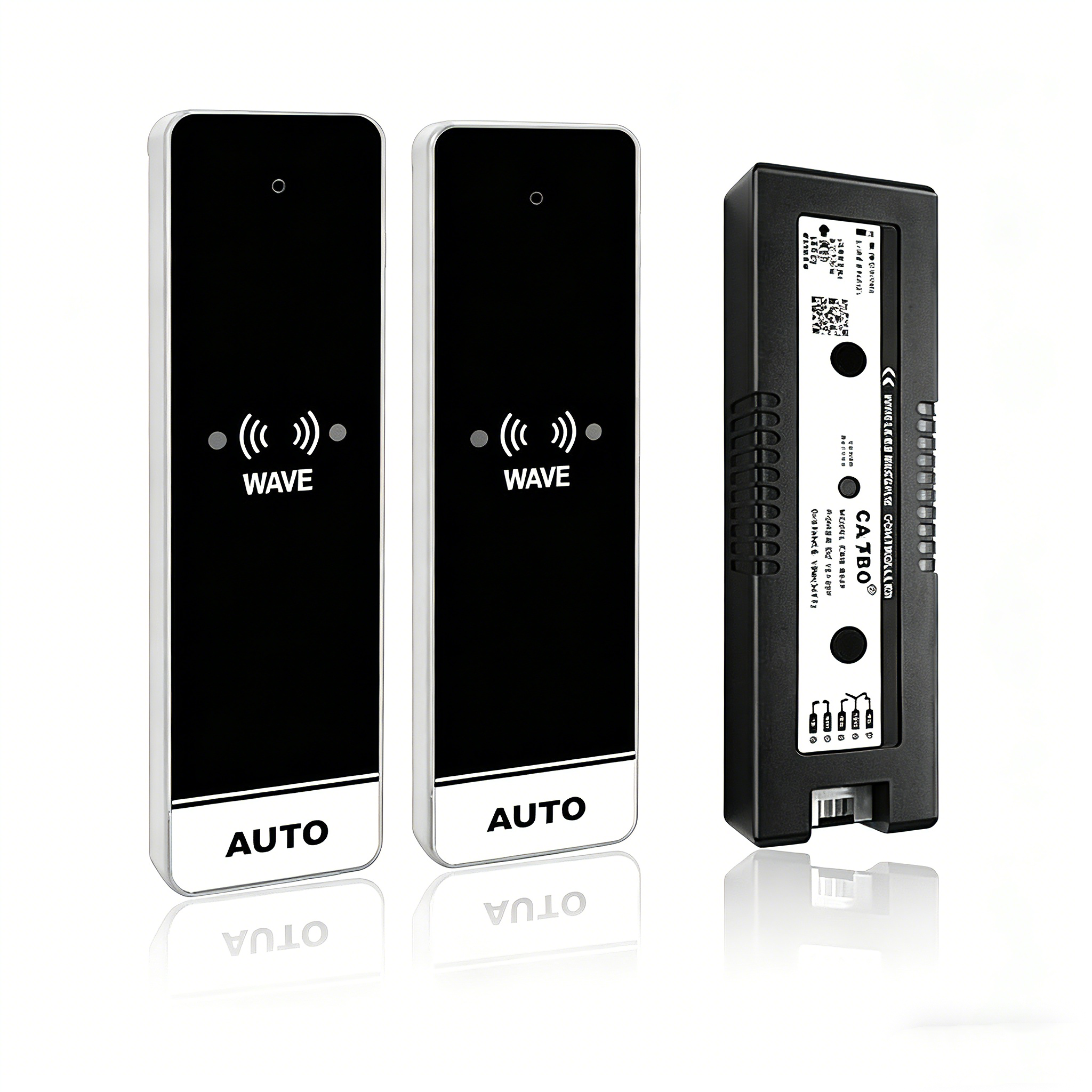

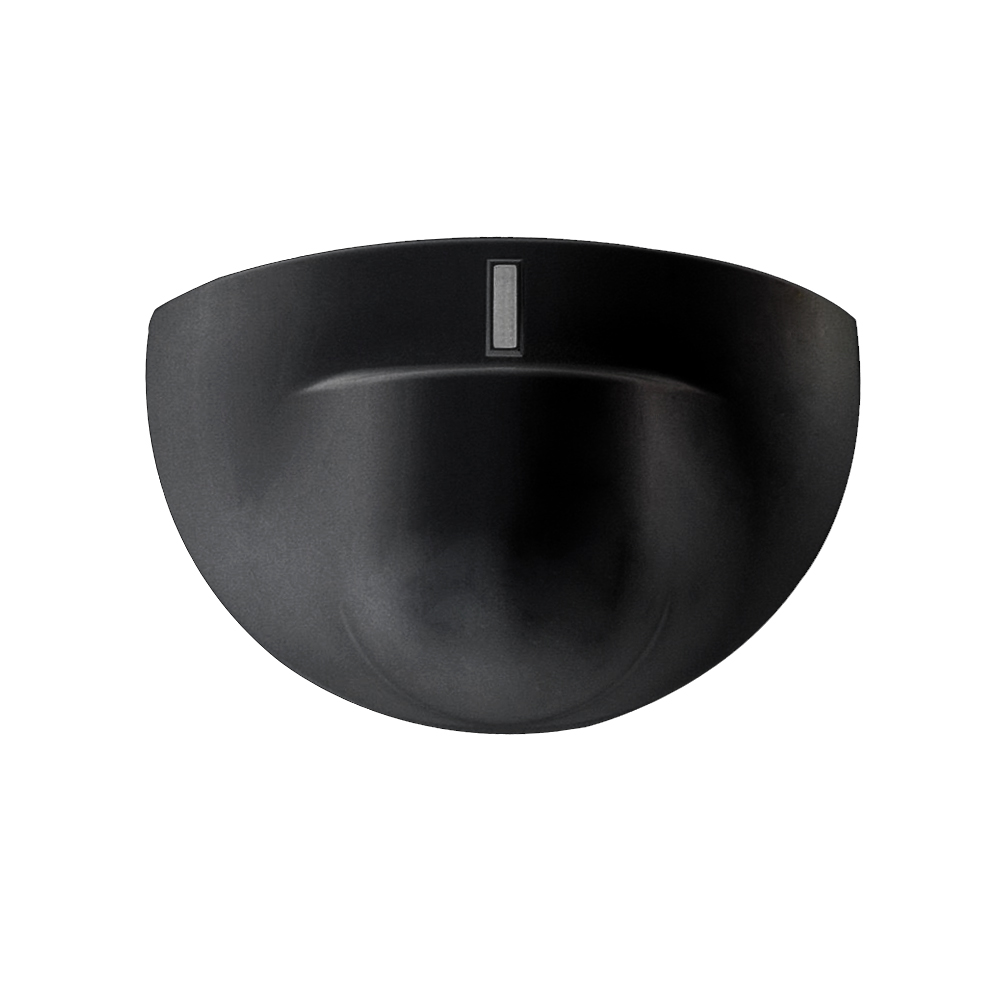

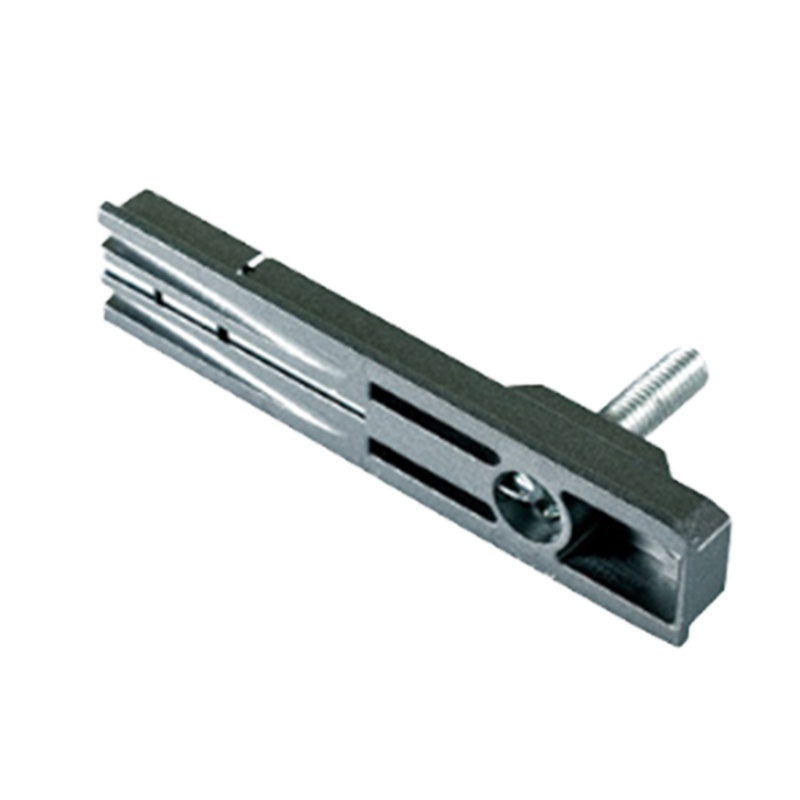

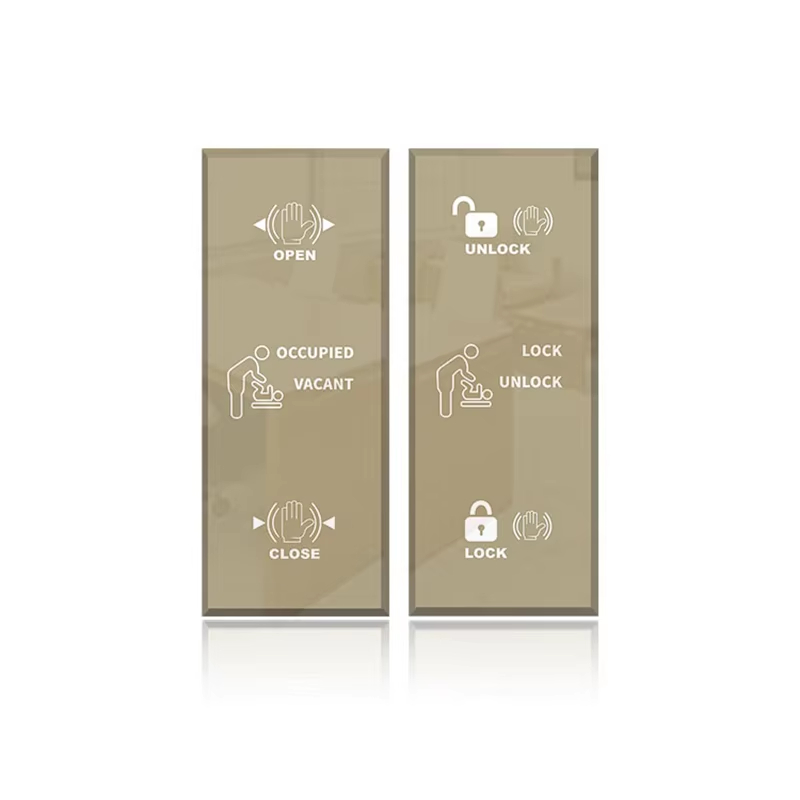

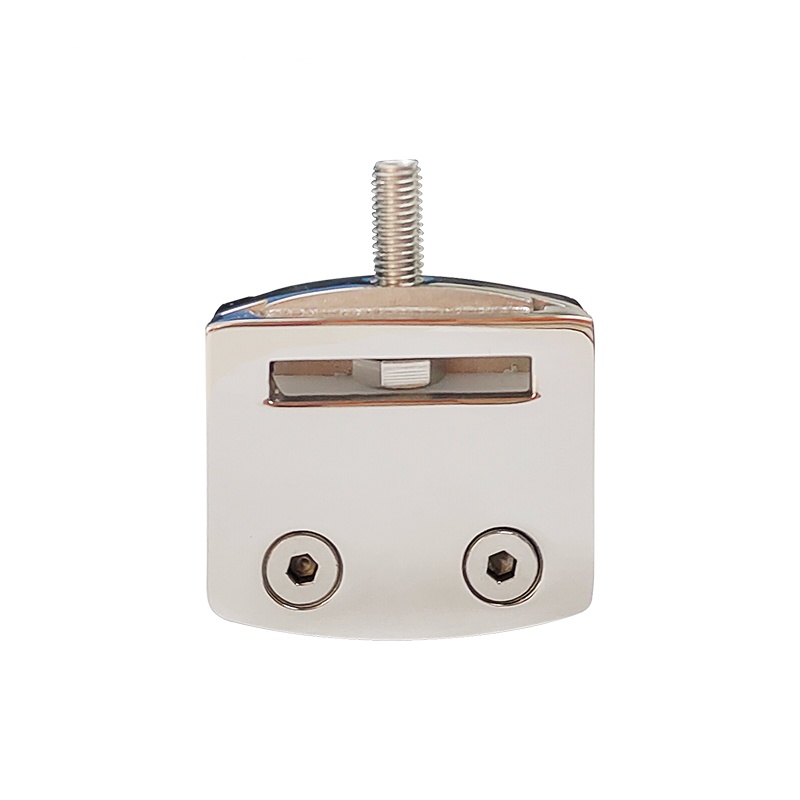

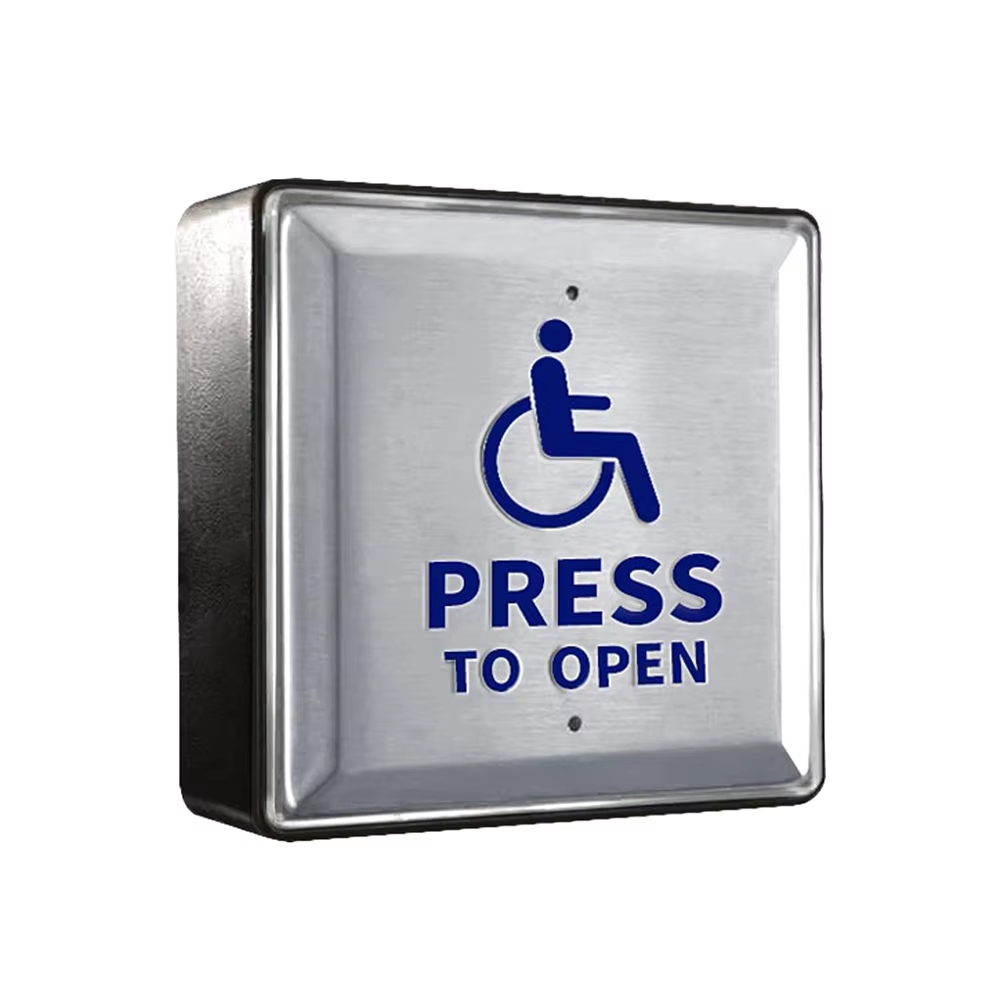

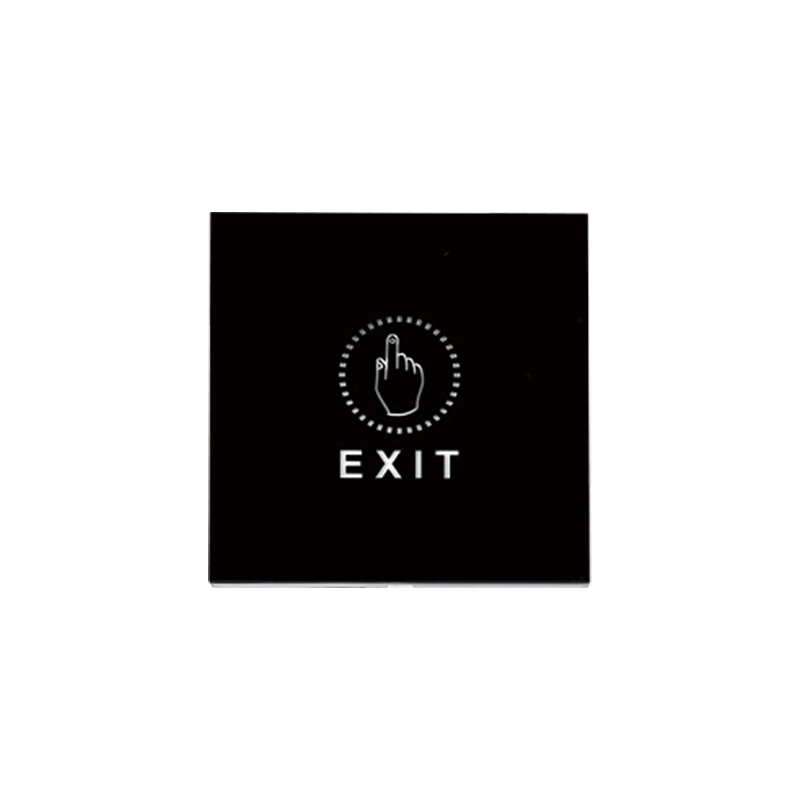

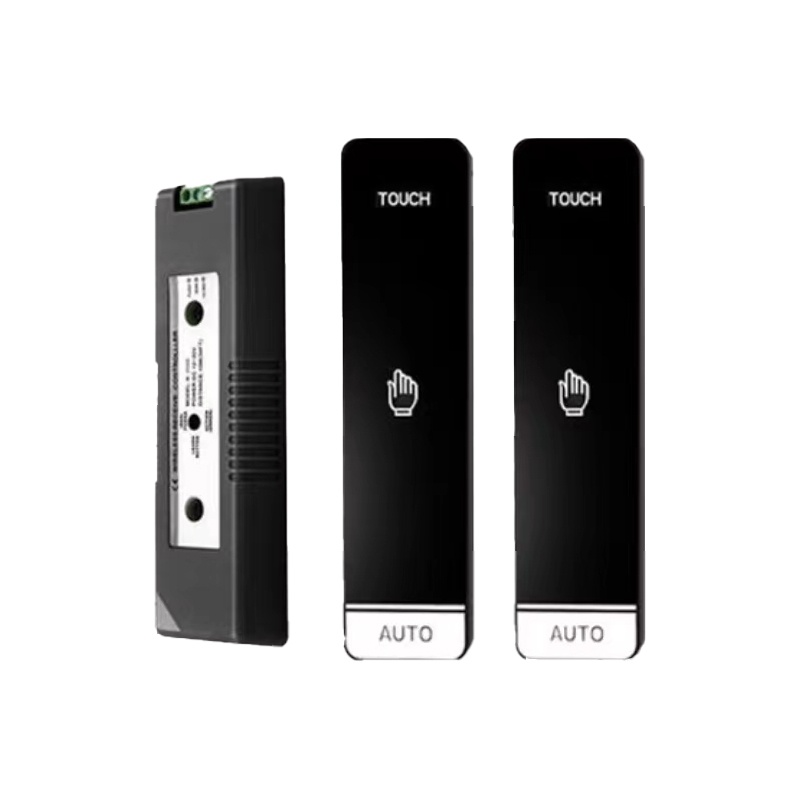

Identify the door leaf and frame separately. Also list the required hangers, guides, mounting parts, covers, switches, detection devices, locking equipment and other project accessories. A product image or accessory listing does not establish that every displayed item is included in a particular quotation.
Check installation and any proposed retrofit

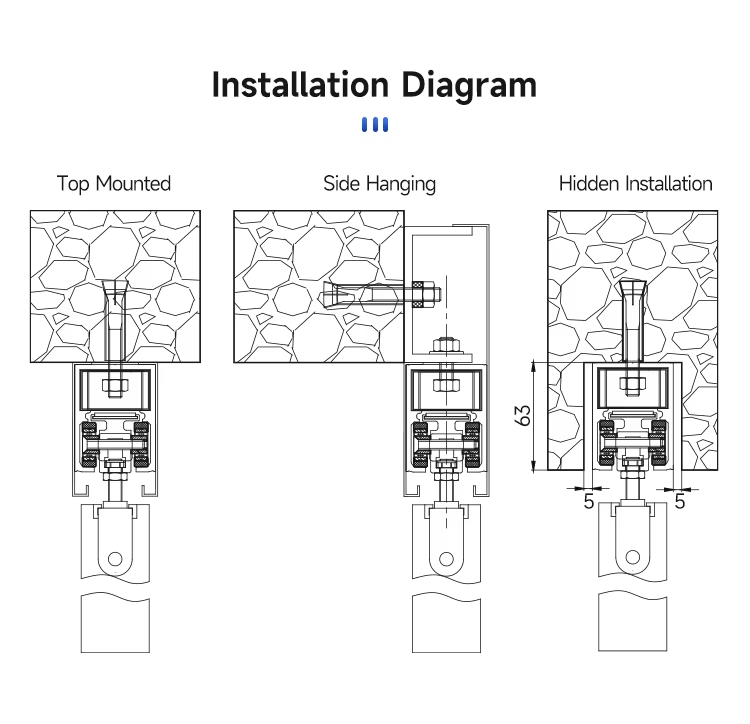

Provide a door layout and a section through the available operator space. Identify fixed and moving panels, the required clear opening, the supporting track and running gear, and access needed for installation and servicing.
For an existing sliding door, include photographs and measured dimensions. Ask which existing parts can be retained and which need to be replaced for the proposed configuration. Compatibility needs to be reviewed for the specific installation.
Agree who provides and installs the mechanical parts, connects the power and controls, commissions the assembly, and records the acceptance checks. Confirm the required detection and protective functions for the proposed door and its use, together with the supporting documentation.
Prepare a comparable quotation request
Use our buyer’s specification and quotation comparison checklist to keep the door arrangement, supply scope and document revisions consistent across offers.
Contact PTADOOR with your door arrangement, leaf dimensions and weights, installation drawing, requested components and quantity. Ask for a proposal that identifies the configuration and the items still to be confirmed.
