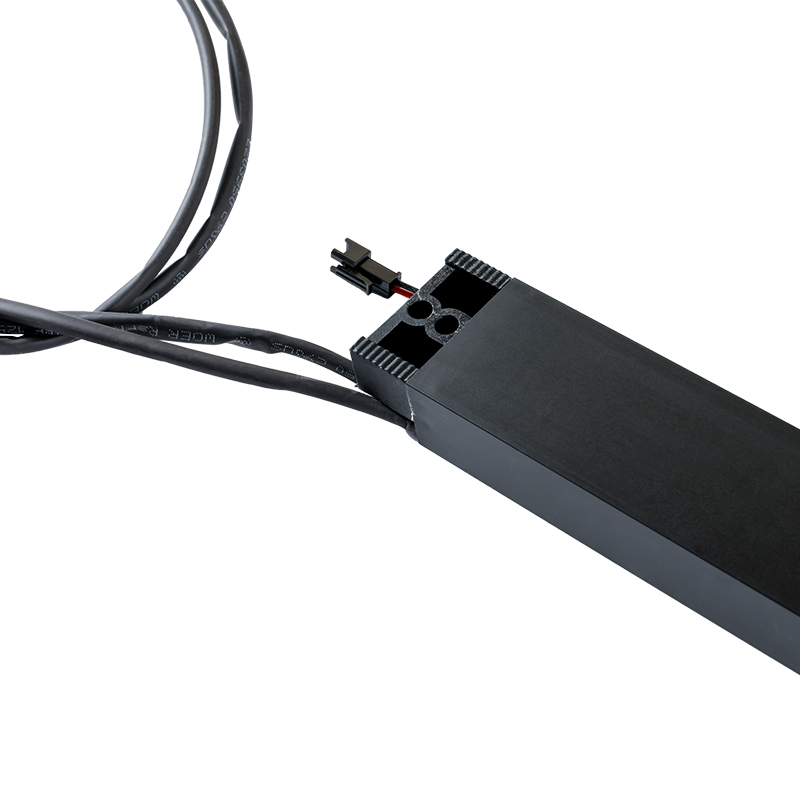

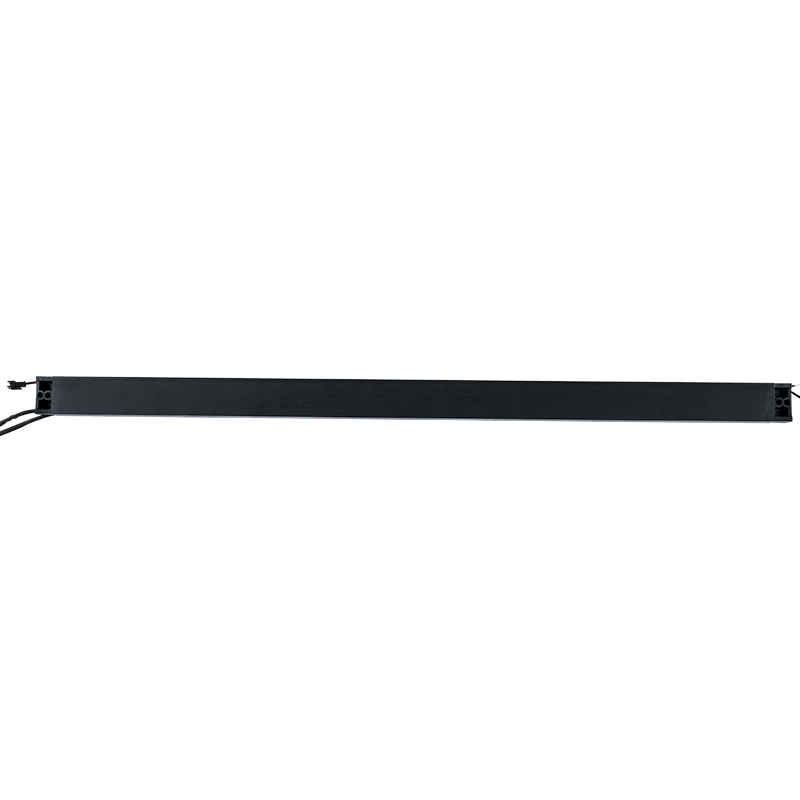

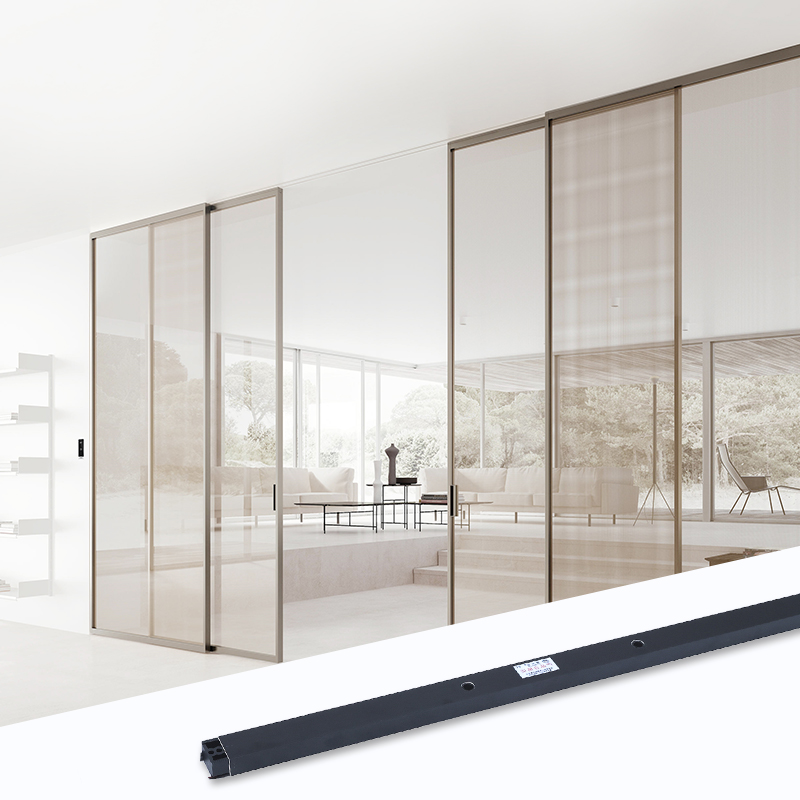

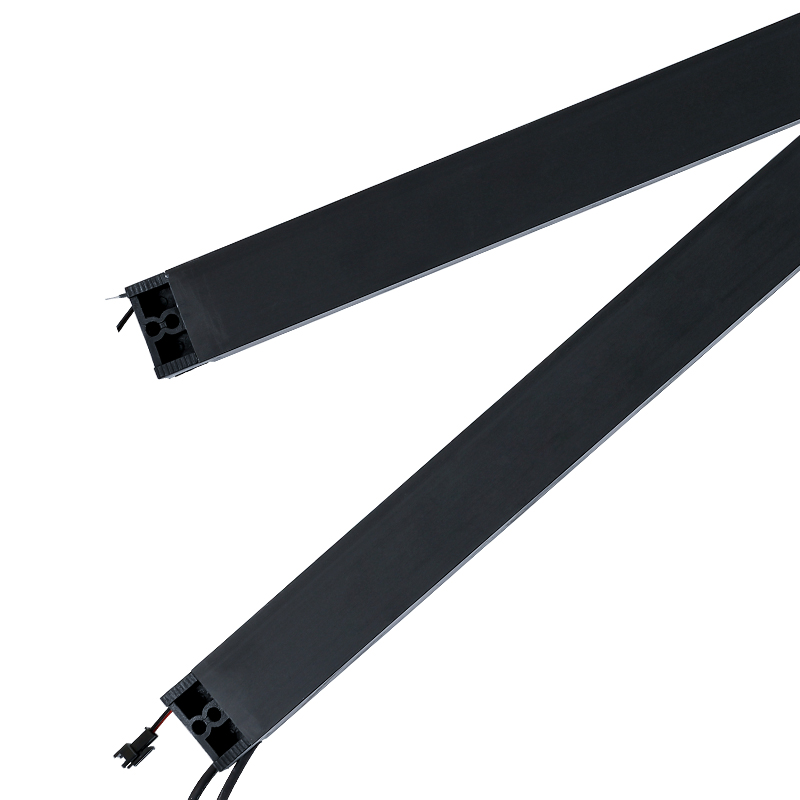

CF-40 linear drive for sliding-door integration
Review the CF-40 Series when your project calls for a magnetic linear-drive component within a sliding door automation system. Define the drive, matching control and power supply separately from the track, running gear, door leaf and frame. The quotation should identify the exact items supplied for your configuration.
For a door manufacturer, profile-system supplier or integration team, selection starts with the door assembly. Send the proposed profile section and movement layout before treating a catalogue model or maximum load figure as a match for your design.
Prepare an integration enquiry
- Identify your role and whether you need a drive component or an operator assembly.
- Give the dimensions and complete weight of each moving leaf, the opening arrangement and required travel. Mark estimated values.
- Provide the available drive space, track and hanger details, fixing arrangement and access for servicing. For an existing door, add photographs and measured dimensions.
- Describe the power supply, activation method, access-control interfaces and required door behaviour, including any project-specific detection or documentation requirements.
- State the sample or project quantity, delivery country and requested timing. Identify any details still to be confirmed.
Confirm the selected configuration
Ask for the proposed model reference, assembly drawing revision and compatible controller and power supply. Confirm load capacity, dimensions, speed settings and operating conditions for that combination. The series values below describe catalogue options; they do not establish that every option applies to one supplied assembly or to your installation.
List the drive, controller, power supply, track, hangers, guides, mounting parts, covers, switches, detection devices and locks with their item references and quantities. Mark each as included, optional, buyer supplied, not applicable or to confirm. Ask separately about sample availability, price, delivery and support terms.
Choose the right supply scope
If you are reviewing a packaged sliding-door operator, see the CF-F40 operator page and confirm its scope for your project. Use the quotation comparison checklist to record included and buyer-supplied items.

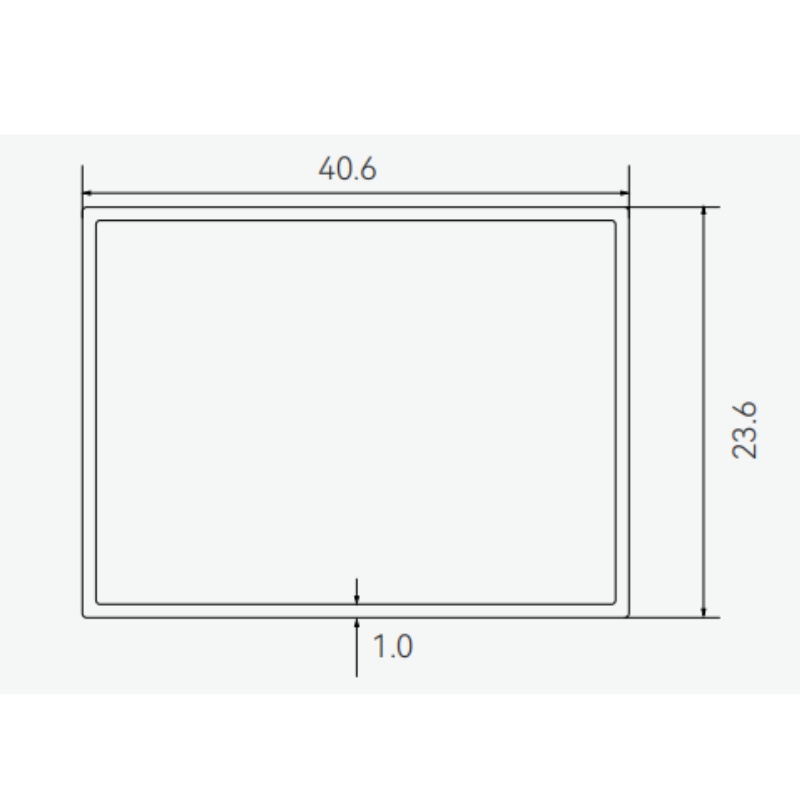

For a slim-profile assembly, review the profile and installation checks. Compatibility needs confirmation against your drawings; this page does not establish that the drive fits an existing door or provide approval for a specialised application.
Request a CF-40 configuration review and quotation. Include “CF-40 component enquiry” and the details above in your message. If drawings are needed, describe the files you have and ask how to share them.
